Loudspeaker YD166-49-F50P 6.5 Inch YD166 Mid Range Loudspeaker Driver Surround Sound Speaker Unit

  • Model YD166-49-F50PDiameter:Φ165mmCone Material:PaperEdge:PaperNominal Power:5wMaximum Power:10wImpedance:815%ΩVoice coil:Fo:10020%HzResponse:Fo-14kHzS.P.L:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD166-49-F50P
  • PDF
  • Description
  • Order

Product Description

QQ截图20201211134537

                          Model                   YD166-49-F50P

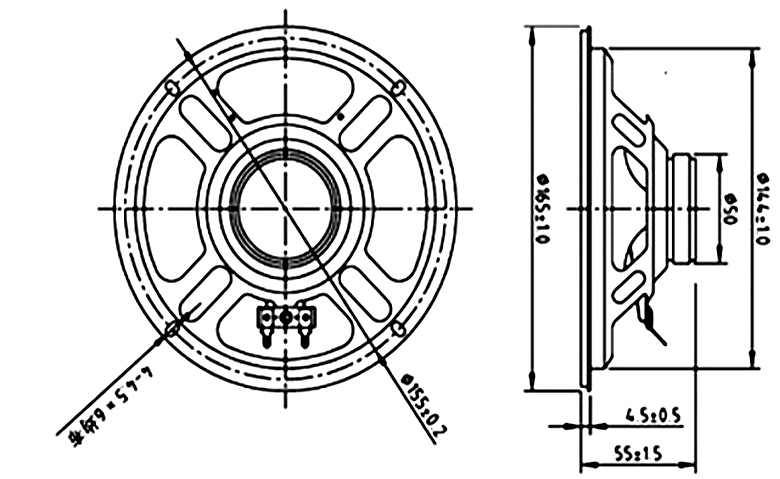

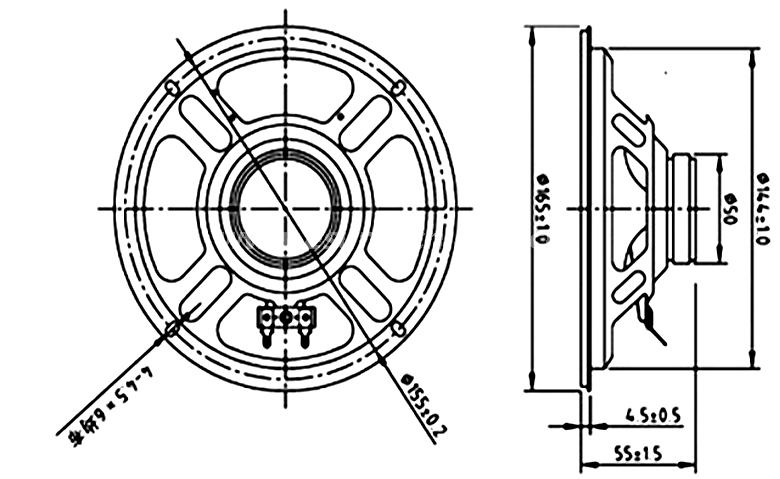

Diameter:

Φ165mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

5w

Maximum Power:

10w

Impedance:

8±15%Ω

Voice coil:


Fo:

100±20%Hz

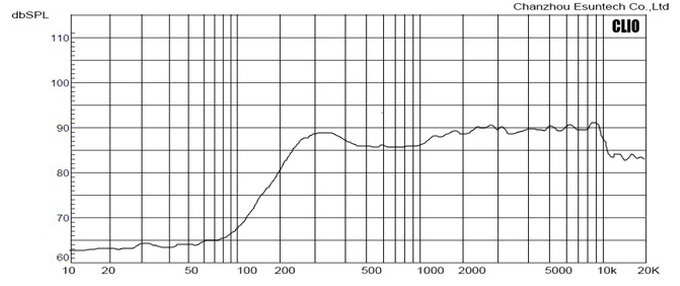

Response:

Fo-14kHz

S.P.L:

88±3dB/W/M

Magnet Size:

Φ50X24X8(Ferrit)

Net weight:

234g

3
