Loudspeaker YD50-06-8N12.5P 50mm 2 Inch Min Full Range Super Loud Instrument Speaker Drivers

  • Model YD50-06-8N12.5PDiameter:Φ50mmCone Material:PaperEdge:PaperNominal Power:0.2wMaximum Power:0.4wImpedance: 815%ΩVoice coil:Φ13.3mmFo: 45020%Hz Respons

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-06-8N12.5P
  • PDF
  • Description
  • Order

Product Description

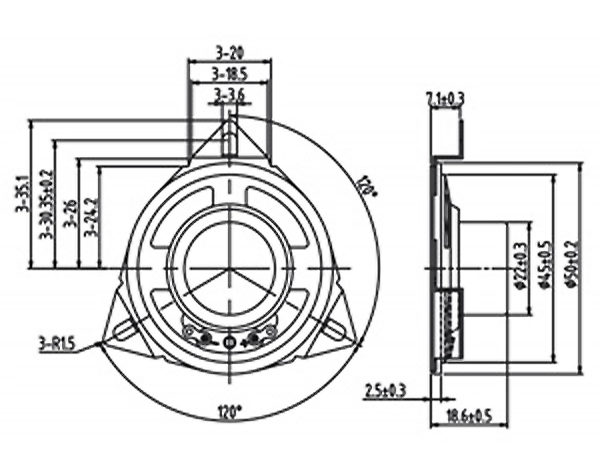

2

                            Model                YD50-06-8N12.5P

Diameter:

Φ50mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

0.2w

Maximum Power:

0.4w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

    450±20%Hz

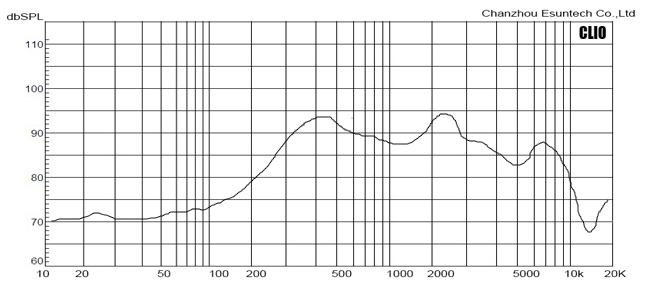

Response:

Fo-4kHz

S.P.L:

84±3dB/W/M

Magnet Size:

Φ12.5×3(NdFeB)

Net weight:

44.5g

3
