Loudspeaker

Loudspeaker YD66-5-8F40P 2.5 Inch Square Audio Speaker Drive Full Range Paper Cone 66mm

  • Model YD66-5-8F40PDiameter:66*66mmCone Material: PaperEdge:PaperNominal Power:0.5wMaximum Power:1.0wImpedance: 815%ΩVoice coil:Φ13.3mmFo:40020%HzResponse:F

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD66-5-8F40P
  • PDF
  • Description
  • Order

Product Description

2

                          Model                   YD66-5-8F40P

Diameter:

66*66mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

0.5w

Maximum Power:

1.0w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

400±20%Hz

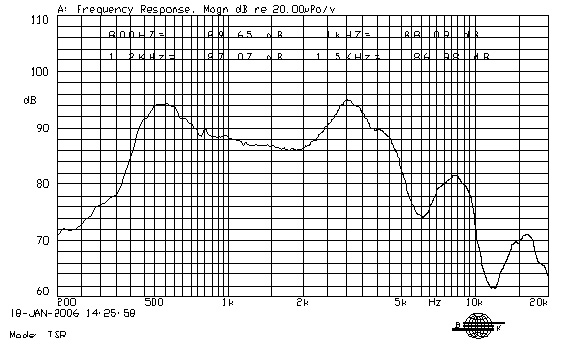

Response:

Fo-10kHz

S.P.L:

87±3dB/W/M

Magnet Size:

Φ40x18x8

Net weight:

  48g

3
