Product Description

Loudspeaker 87mm YD87-10-8F45P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD87-10-8F45P-R

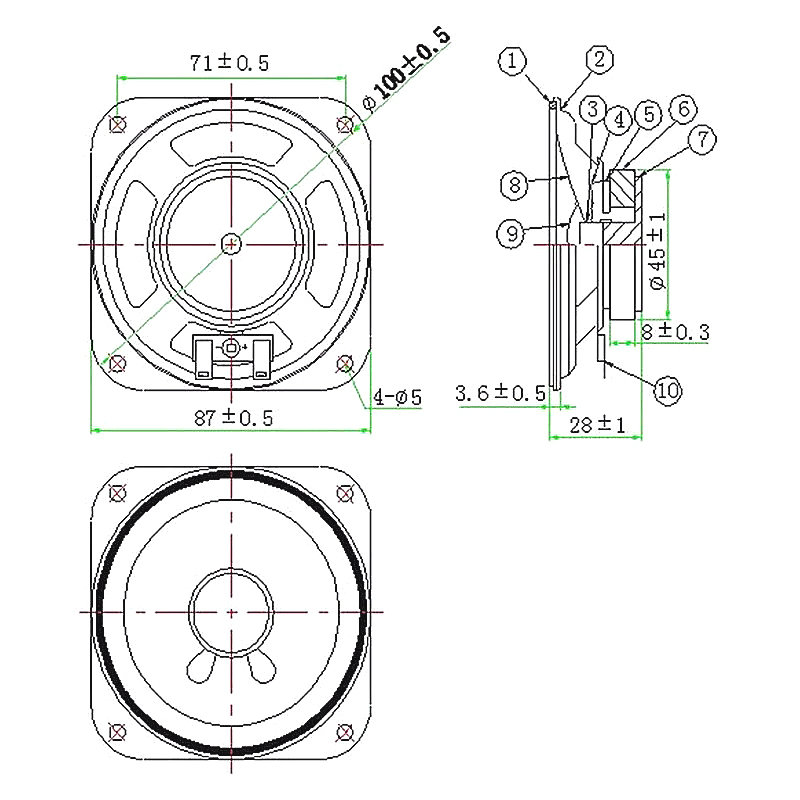

Dimension:87*87*28H mm
Cone Material:Paper
Edge:Paper
Nominal Power:2W
Maximum Power:3W
Impedance:8Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:230±20%

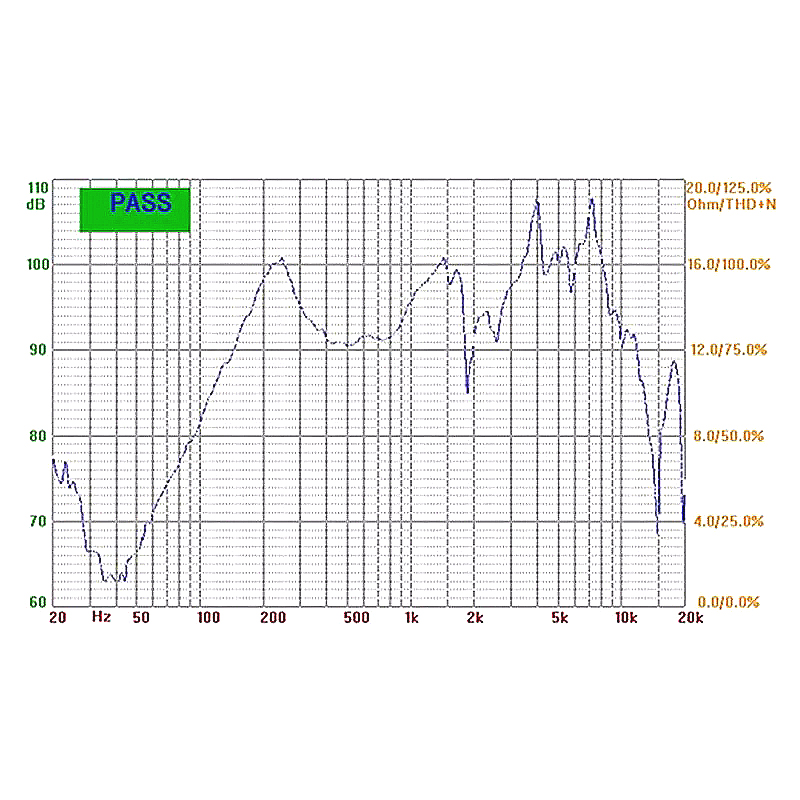

Response:Fo~10KHZ
S.P.L:94±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ45*22*8mm
Net weight:121g±8%
