Loudspeaker 45mm YD45-09-8N12.5M-R Min Full Range Waterproof Speaker Drivers

  • Loudspeaker 45mm YD45-09-8N12.5M-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co LtdModelYD45-09-8N12.5P-RDimension:Φ45*10H mmCone Material:PETEdge: PaperNominal Power:0.5WMaximum Po

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD45-09-8N12.5M-R
  • Diameter: Φ45mm*10mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 45mm YD45-09-8N12.5M-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD45-09-8N12.5P-R

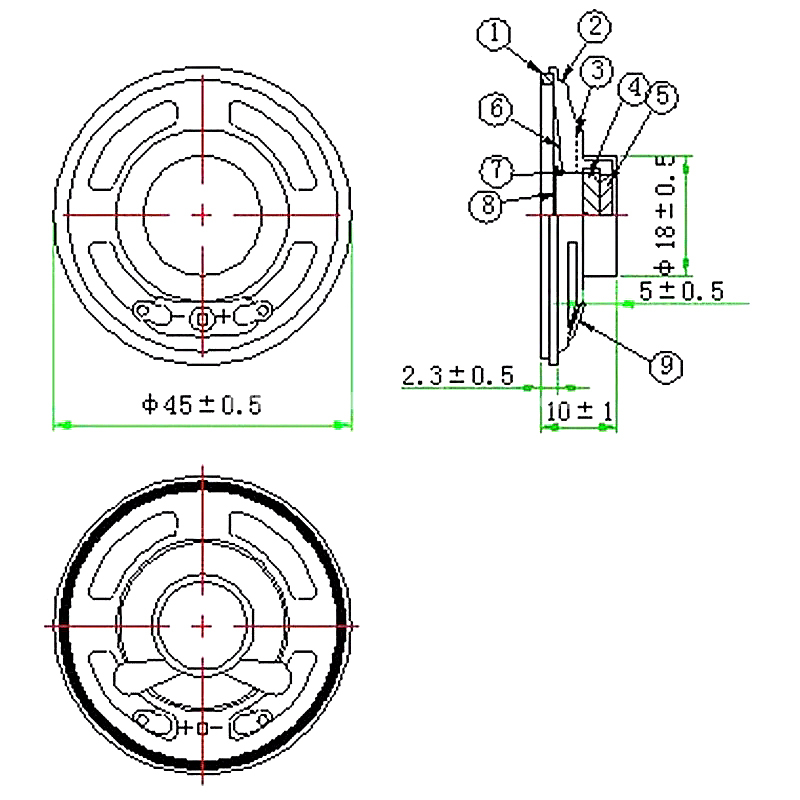

Dimension:Φ45*10H mm
Cone Material:PET
Edge: Paper
Nominal Power:0.5W
Maximum Power:1W
Impedance:8Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:550±20%

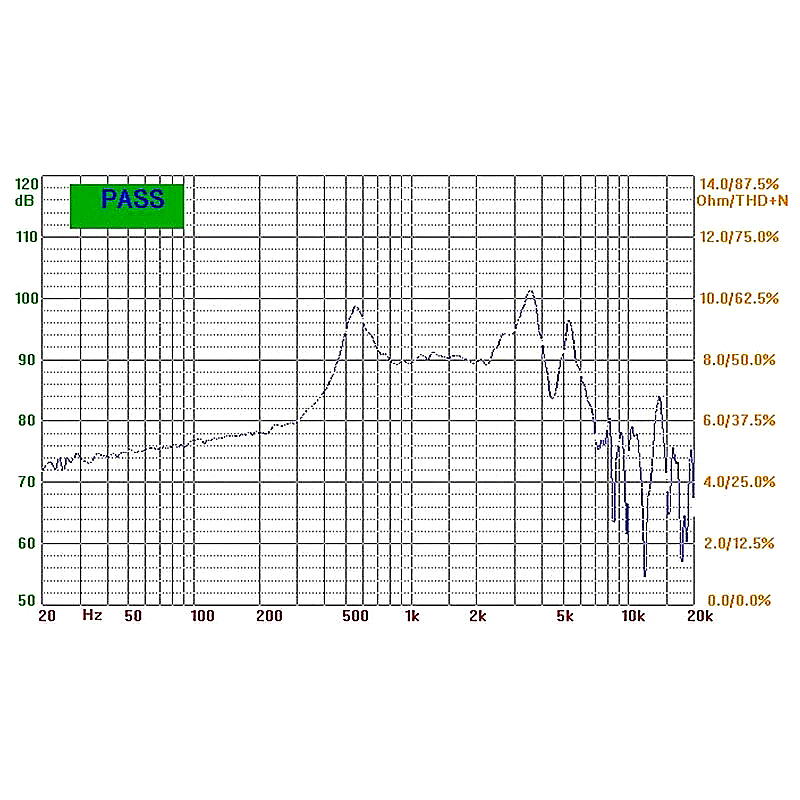

Response:Fo~7KHZ
S.P.L:92±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2mm
Net weight:15g±8%
