Loudspeaker YD100-06-8F60P 4 Inch YD100 Full Range Surround Sound Loudspeaker Unit Raw Speaker

  • Model YD100-06-8F60PDiameter:104104mmCone Material:PaperEdge:PaperNominal Power:5wMaximum Power:8wImpedance:815%ΩVoice coil:Φ14.4mmFo:35020%HzResponse:Fo-8kH

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD100-06-8F60P
  • Diameter: 104×104mm
  • PDF
  • Description
  • Order

Product Description

未标题-1

                            Model                YD100-06-8F60P

Diameter:

104×104mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

5w

Maximum Power:

8w

Impedance:

8±15%Ω

Voice coil:

Φ14.4mm

Fo:

350±20%Hz

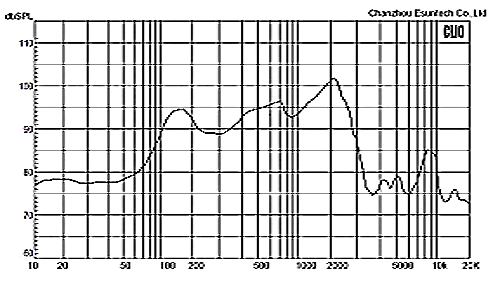

Response:

Fo-8kHz

S.P.L:

94±3dB/1W/0.5M

Magnet Size:

Φ60×32×8(Ferrite)

Net weight:

242g

3
