Mini Speaker

20mm miniature speaker EST20N-A

  • 20mmx3mm mini wireless speaker 4/8/16/32 ohm 600hz 0.5W 2030 2003 mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,computer,toy,cell phon

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EST20N-A

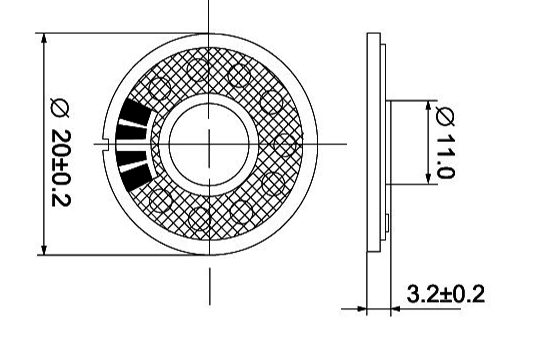

  • Diameter: 20mmx3mm
  • PDF
  • Description
  • Order

Product Description

20mmx3mm   mini wireless speaker 4/8/16/32 ohm 600hz 0.5W 2030 2003 mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

2

Model No.EST20N-A
DiaphgrameMylar
FrameSteel
Nominal Power: 0.25W
Maximum Power: 0.5W
Impedance: 4/8/16/32 ohm±15%Ω
Fo: 600 HZ

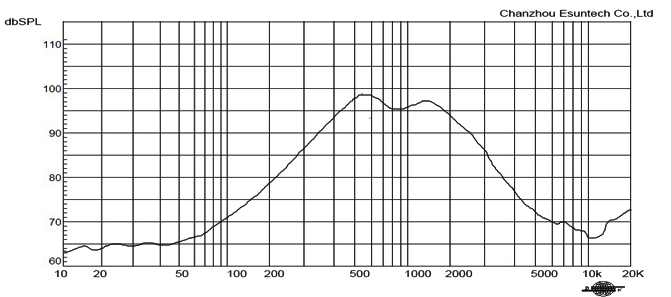

Response: Fo-20kHz
S.P.L87±3dB/0.1W/0.1
Magnet Size: NdFeB
RohsYes

3
