Mini Speaker

buzzer speaker 30mm pin speaker EXDC3013

  • 30mmx13mm PIN speaker auto buzzer 32 ohm 1000hz-4000hz 1.5W 3013 mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,computer,toy,cell phon

  • Availability: Available
  • Brand: Esuntech
  • MODEL:

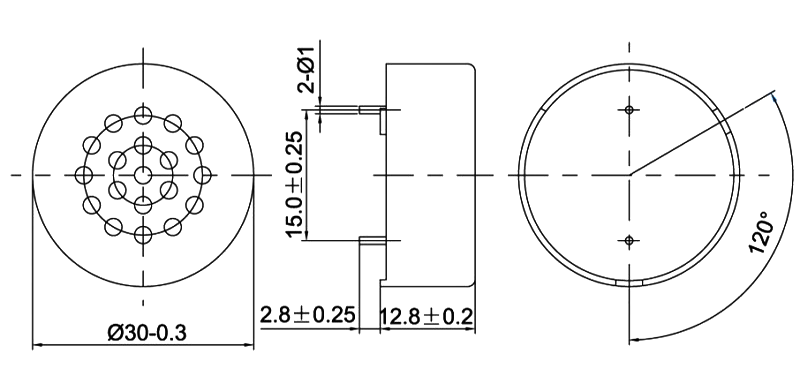

  • Diameter: 30mmx13mm
  • PDF
  • Description
  • Order

Product Description

30mmx13mm   PIN  speaker auto buzzer 32 ohm 1000hz-4000hz 1.5W 3013 mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

2

Model No.EXDC3013-R32-15.0B-F-R
Rated Impedance (ohm)32 OHM±20%
Rated (Max.) Power (W)1.3(1.5)

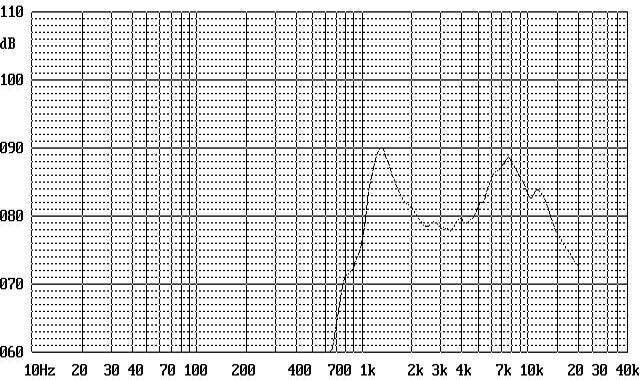

Frequency Range (Hz)1000~4000
SPL (dB) at 10cm/0.15W1000HZ85 min
2000HZ90 min
Operating Temperature  (℃)-40～+105
Storage Temperature    (℃)-30～+115
Weight (g)
RoHSYes

3
