Mechanical Buzzer

SMD Piezo buzzer EPB2412S 12VDC

  • 24mm*12mm 12V 2412 SMD passive piezo transducer & buzzer round buzzer buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd. Model No.EPB2412

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPB2412S-HS-12-3.4-R

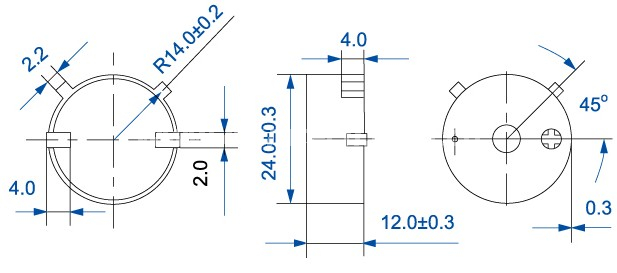

  • Diameter: 24mm*12mm
  • PDF
  • Description
  • Order

Product Description

24mm*12mm 12V 2412   SMD passive piezo transducer & buzzer round buzzer buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


Model No.EPB2412S-HS-12-3.4-R
Rated Voltage (VDC)12
Max Input Voltage (VDC)3~16
Rated Current (mA)≤12
Resonance Frequency (KHz)3.4±0.5
Capacitance at 120Hz (pF)12000±30%
Sound Output at 10cm (dB)≥90
Operating Temperature (℃)-20～+75
Storage Temperature (℃)-30～+85
Weight (g)2
Housing MaterialLCP
RoHSYes
