Loudspeaker

Loudspeaker YD66-19-4F45C 2.5 Inch Best Mid Range Square Raw Audio Speaker Unit 66mm*66mm

  • Model YD66-19-4F45CDiameter:Φ67mmCone Material:PaperEdge:ClothNominal Power:2.0wMaximum Power:4.0wImpedance: 415%ΩVoice coil:Φ13.3mmFo:16020%HzResponse:Fo-8k

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD66-19-4F45C
  • PDF
  • Description
  • Order

Product Description

2

                          Model                  YD66-19-4F45C

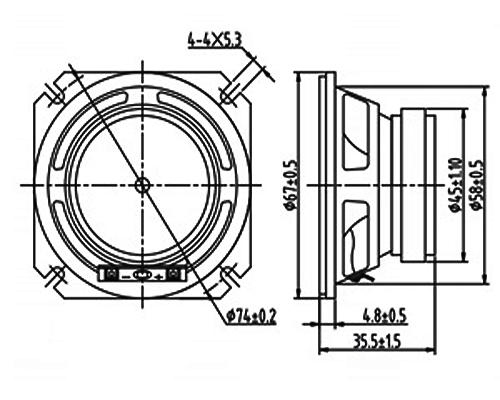

Diameter:

Φ67mm

Cone Material:

Paper

Edge:

Cloth

Nominal Power:

2.0w

Maximum Power:

4.0w

Impedance:

4±15%Ω

Voice coil:

Φ13.3mm

Fo:

160±20%Hz

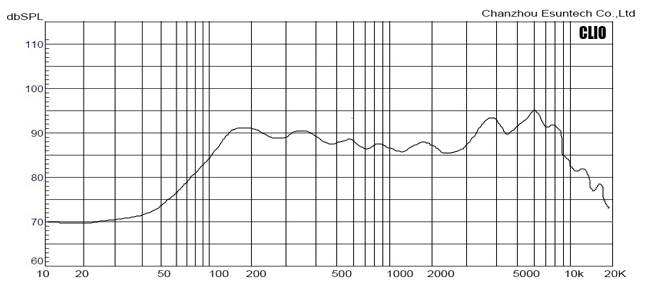

Response:

Fo-8kHz

S.P.L:

82±3dB/W/M

Magnet Size:

Φ45×Φ22×8( Ferrite)

Net weight:

126g

3
