Loudspeaker YD57-11-8F40C 2.2 Inch Paper Cone full range Doorbell Loudspeaker Unit for Repair 8ohm 0.5W

  • Model YD57-11-8F40CDiameter:57mmCone Material:PaperEdge:ClothNominal Power:2.0wMaximum Power:3.0wImpedance:815%Voice coil:13.3mmFo:Response:Fo-20kHzS.P.L:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD57-11-8F40C
  • PDF
  • Description
  • Order

Product Description

2

                             Model                  YD57-11-8F40C

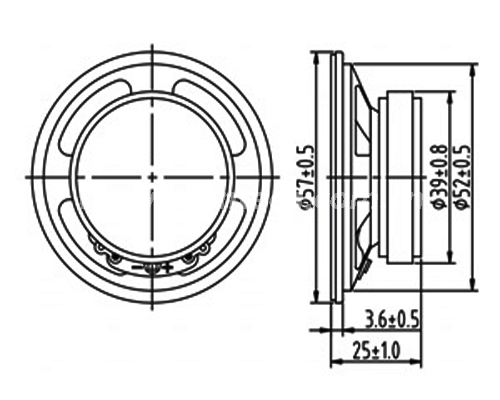

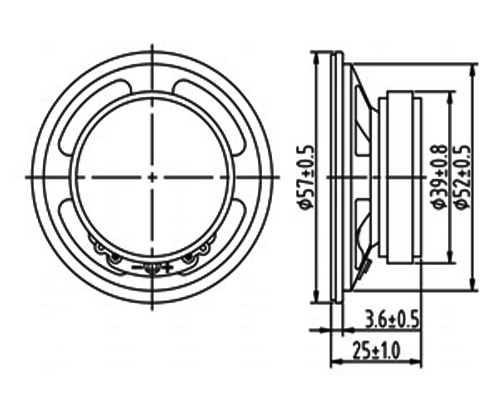

Diameter:

57mm

Cone Material:

Paper

Edge:

Cloth

Nominal Power:

2.0w

Maximum Power:

3.0w

Impedance:

8±15%

Voice coil:

13.3mm

Fo:

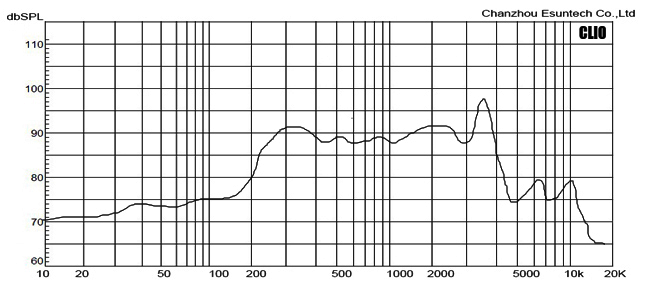

Response:

Fo-20kHz

S.P.L:

84*3dB/W/M

Magnet Size:

40*19*6( Ferrite)

Net weight:

79g
