Loudspeaker

Loudspeaker YD57-06-8N12.5P 22mm magnet Intercom Loudspeaker Unit for Repair 8ohm 0.5W

  • Model YD57-06-8N12.5PDiameter:Φ57mmCone Material:PaperEdge:PaperNominal Power:0.2wMaximum Power:0.4wImpedance: 815%ΩVoice coil:Φ13.3mmFo:40020%HzResponse:Fo

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD57-06-8N12.5P
  • PDF
  • Description
  • Order

Product Description

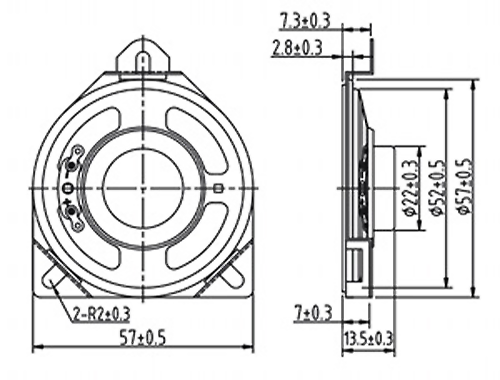

2

                           Model                  YD57-06-8N12.5P

Diameter:

Φ57mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

0.2w

Maximum Power:

0.4w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

400±20%Hz

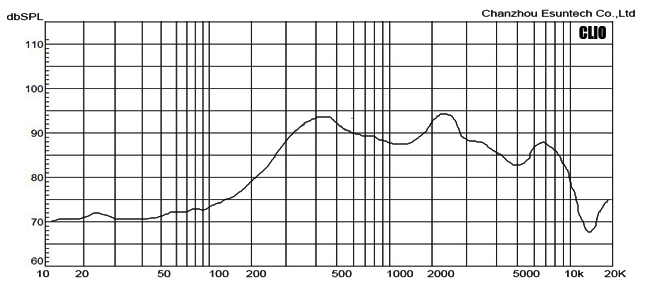

Response:

Fo-4.5kHz

S.P.L:

83±3dB/W/M

Magnet Size:

Φ12.5×1.5(NdFeB)

Net weight:

30.5g

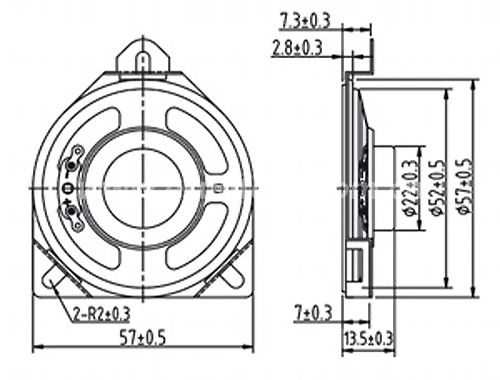

3
