Loudspeaker

Loudspeaker YD57-04-32N12.5P 22mm magnet Intercom Loudspeaker Unit for Repair

  • Model YD57-04-32N12.5PDiameter:57*57mmCone Material:PaperEdge:PaperNominal Power:0.2wMaximum Power: 0.5wImpedance: 3215%ΩVoice coil:Φ12.5mmFo:45020%HzResponse

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD57-04-32N12.5P
  • PDF
  • Description
  • Order

Product Description

2

                          Model

                YD57-04-32N12.5P

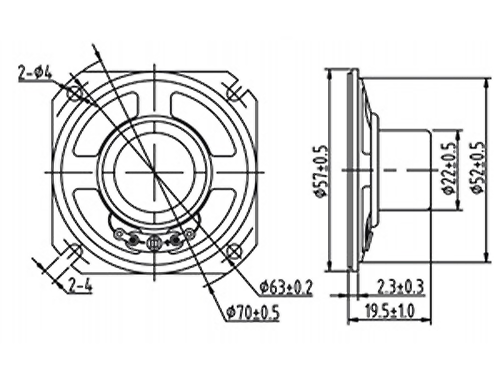

Diameter:

57*57mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

0.2w

Maximum Power:

0.5w

Impedance:

32±15%Ω

Voice coil:

Φ12.5mm

Fo:

450±20%Hz

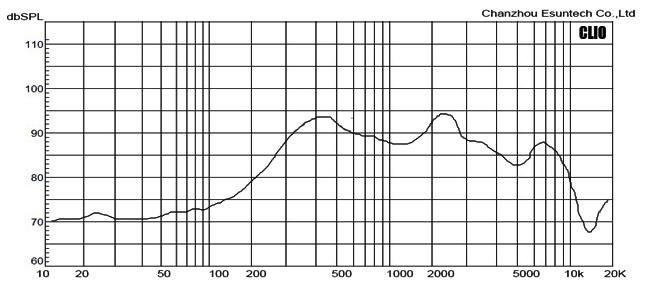

Response:

Fo-4kHz

S.P.L:

84±3dB/W/M

Magnet Size:

Φ13×10(NdFeB)

Net weight:

43.5g

3
