Loudspeaker YD57-01-8F32P 57mm 2 inch 8 OHM Doorbell Speaker Drivers

  • Model No.YD57-01-8F32PDimension:Φ57*17H mmCone Material:PaperEdge:PaperNominal Power:0.25WMaximum Power:0.5WImpedance:8Ω15%ΩVoice coil:13.28mm PL+CuFo:40020%Response:Fo~5KHZS.P.L:843dB(AT 0.1W/0.1M,Av

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD57-01-8F32P
  • PDF
  • Description
  • Order

Product Description


Model No.YD57-01-8F32P
Dimension:Φ57*17H mm
Cone Material:Paper
Edge:Paper
Nominal Power:0.25W
Maximum Power:0.5W
Impedance:8Ω±15%Ω
Voice coil:13.28mm PL+Cu
Fo:400±20%

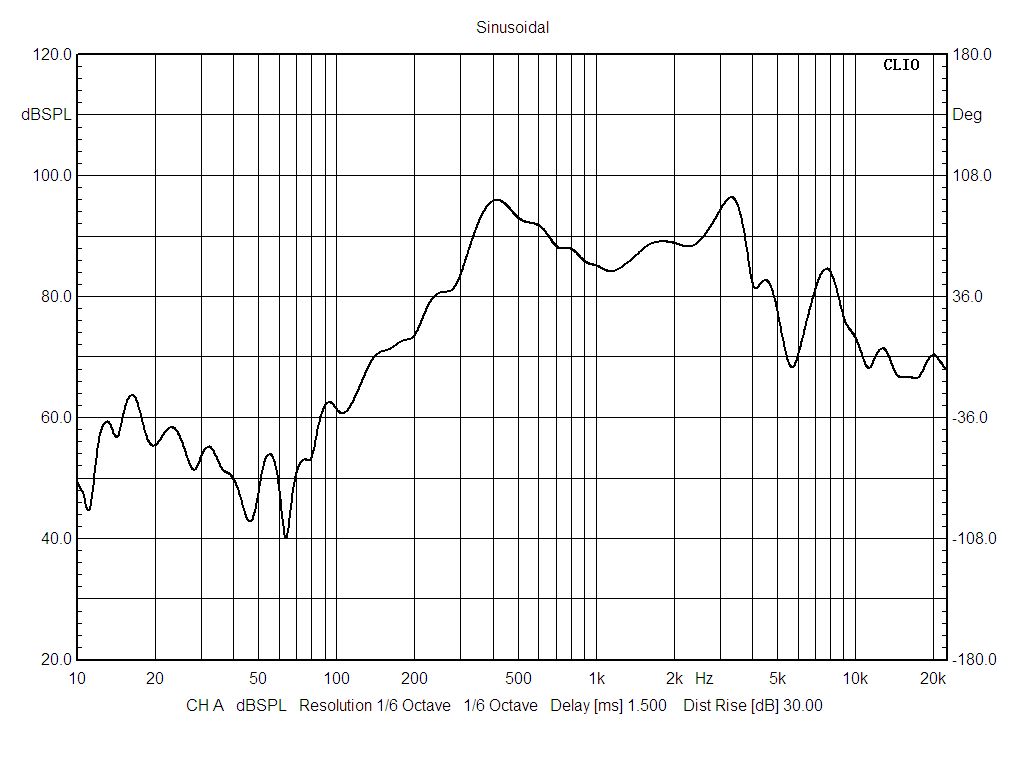

Response:Fo~5KHZ
S.P.L:84±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ32*18*6mm
Net weight:50g±8%


YD57-1-8F32P-R-Q
