Loudspeaker YD166-05-8F80U 6.5 Inch High Quality Bass Speaker Driver Car Speaker Manufacturer

  • Model YD166-05-8F80UCone Material:PaperEdge:FoamNominal Power:10wMaximum Power:30wImpedance:815%ΩVoice coil:Φ25.9mmFo:8020%HzResponse:Fo-5kHzS.P.L:923dB/1

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD166-05-8F80U
  • PDF
  • Description
  • Order

Product Description

QQ截图20201211134537


                          Model                     YD166-05-8F80U

Cone Material:

Paper

Edge:

Foam

Nominal Power:

10w

Maximum Power:

30w

Impedance:

8±15%Ω

Voice coil:

Φ25.9mm

Fo:

80±20%Hz

Response:

Fo-5kHz

S.P.L:

92±3dB/1W/0.5M

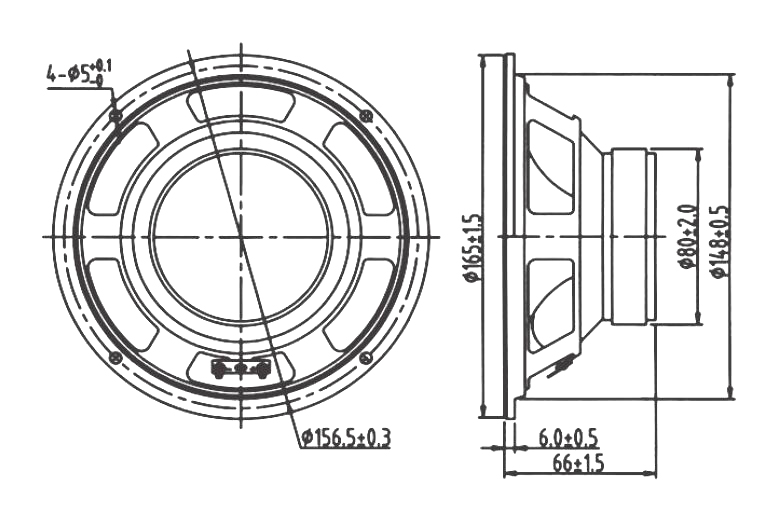

Magnet Size:

Φ80×40×15(Ferrite)

Net weight:

650g
