Loudspeaker

Loudspeaker YD166-05-8F70C-R 6.5 Inch High Quality Bass Speaker Driver Car Woofer Manufacturer

  • Model YD166-05-8F70C-RDiameter:Φ167mmCone Material:PaperEdge:FoamNominal Power:10wMaximum Power:30wImpedance:815%ΩVoice coil:Φ25.9mmFo:8020%HzResponse:Fo-5kH

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD166-05-8F70C-R
  • PDF
  • Description
  • Order

Product Description

02

                           Model                 YD166-05-8F70C-R

Diameter:

Φ167mm

Cone Material:

Paper

Edge:

Foam

Nominal Power:

10w

Maximum Power:

30w

Impedance:

8±15%Ω

Voice coil:

Φ25.9mm

Fo:

80±20%Hz

Response:

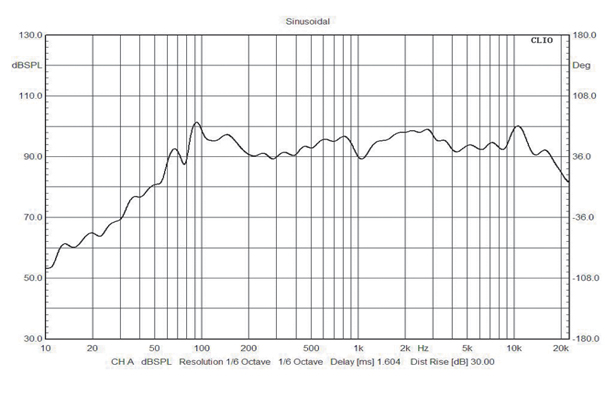

Fo-5kHz

S.P.L:

92±3dB/1W/0.5M

Magnet Size:

Φ80×40×15(Ferrite)

Net weight:

650g

03
