Loudspeaker

Loudspeaker 57mm YD57-32-8F45P-R Min Full Range Multimedia Speaker Drivers

  • Loudspeaker 57mm YD57-32-8F45P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD57-32-8F45P-RDimension:Φ57*26H mmCone Material:PaperEdge:FoamNominal Power:3WMaximum Power:5W

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD57-32-8F45P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 57mm YD57-32-8F45P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD57-32-8F45P-R

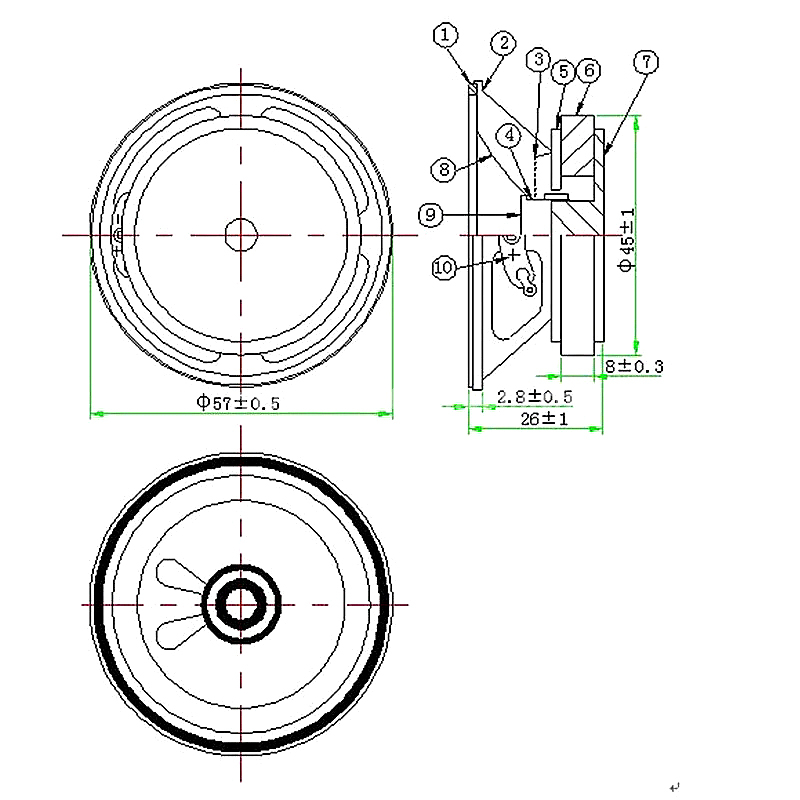

Dimension:Φ57*26H mm
Cone Material:Paper
Edge:Foam
Nominal Power:3W
Maximum Power:5W
Impedance:8±15%Ω
Voice coil:13.28mm PSV+Cu
Fo:240±20%Hz
Response:Fo~20KHZ
S.P.L:91±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ45*22*8mm
Net weight:104g±8%
