Medical Equipment Speaker

Loudspeaker 57mm YD57-30-8F45P-R Min Full Range Equipment Speaker Drivers

  • Loudspeaker 57mm YD57-30-8F45P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co LtdModelYD57-30-8F45P-RDimension:Φ57*26H mmCone Material:PaperEdge:PaperNominal Power:3WMaximum Power:5W

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD57-30-8F45P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 57mm YD57-30-8F45P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD57-30-8F45P-R

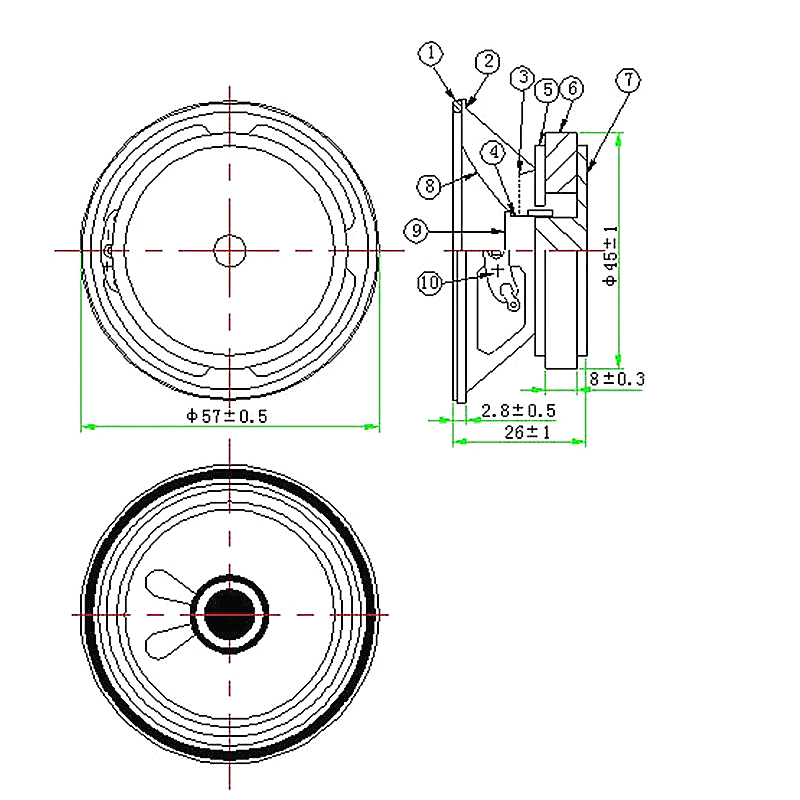

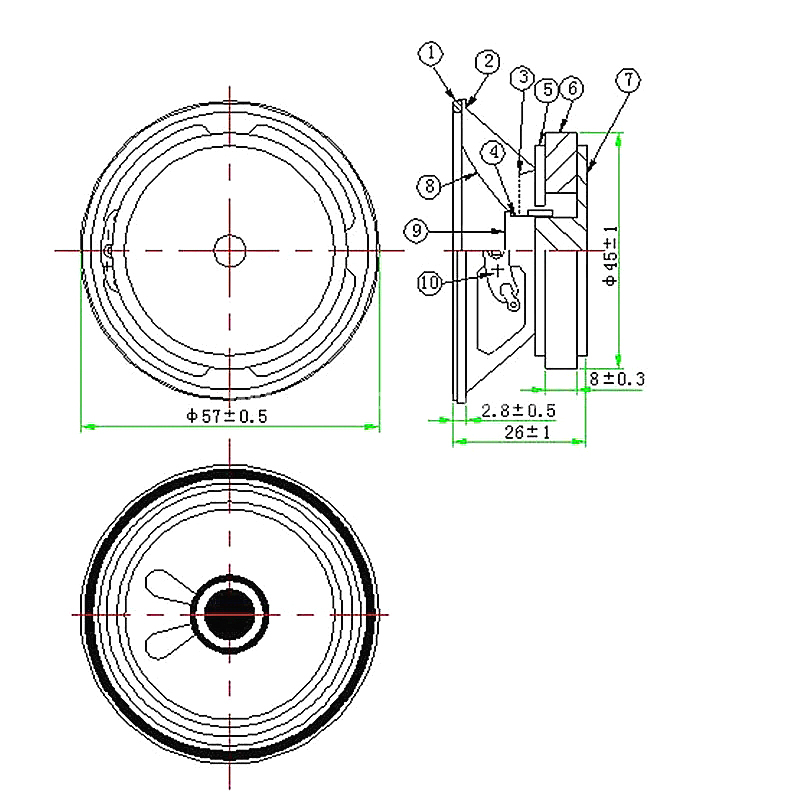

Dimension:Φ57*26H mm
Cone Material:Paper
Edge:Paper
Nominal Power:3W
Maximum Power:5W
Impedance:8Ω±15%Ω
Voice coil:13.28mm PL+Cu
Fo:380±20%
Response:Fo~10KHZ
S.P.L:94±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ45*22*8mm
Net weight:104g±8%
