Product Description

Loudspeaker 57mm YD57-24-32N12.5P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD57-24-32N12.5P-R

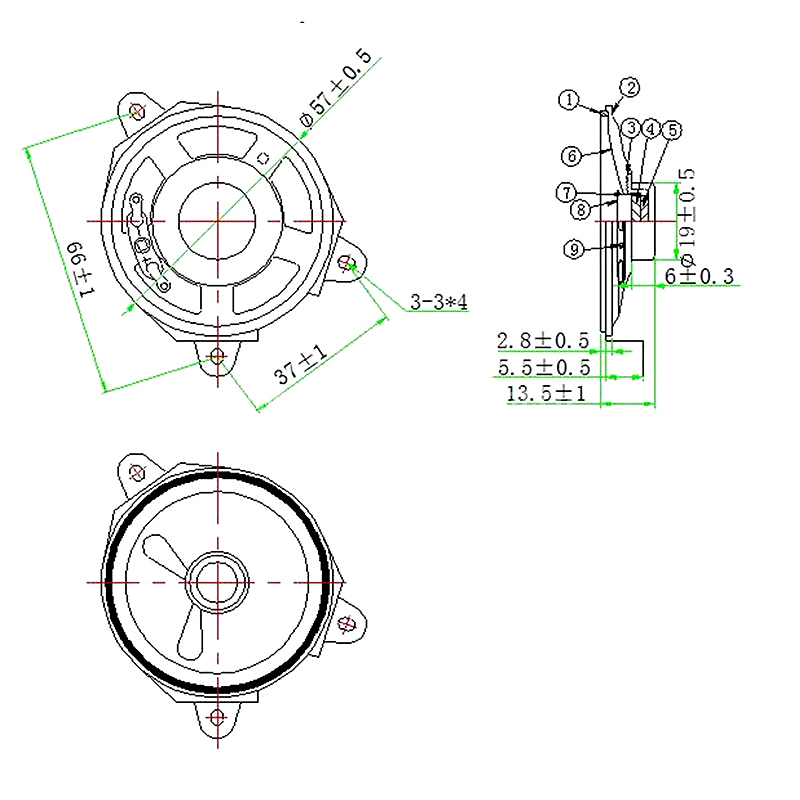

Dimension:Φ57*13.5H mm
Cone Material:Paper
Edge:Paper
Nominal Power:0.5W
Maximum Power:1W
Impedance:32Ω±15%Ω
Voice coil:13.28mm PL+Cu
Fo:500±20%

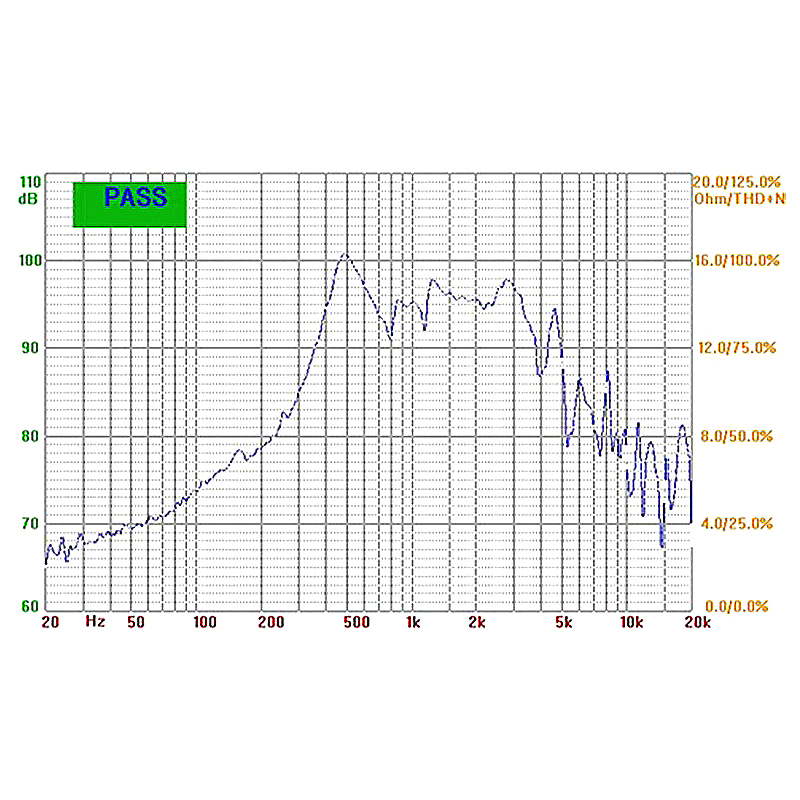

Response:Fo~5KHZ
S.P.L:94±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2mm
Net weight:23g±8%
