Product Description

Loudspeaker 57mm YD57-22-50N12.5P-R 18mm magnet  Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD57-22-50N12.5P-R

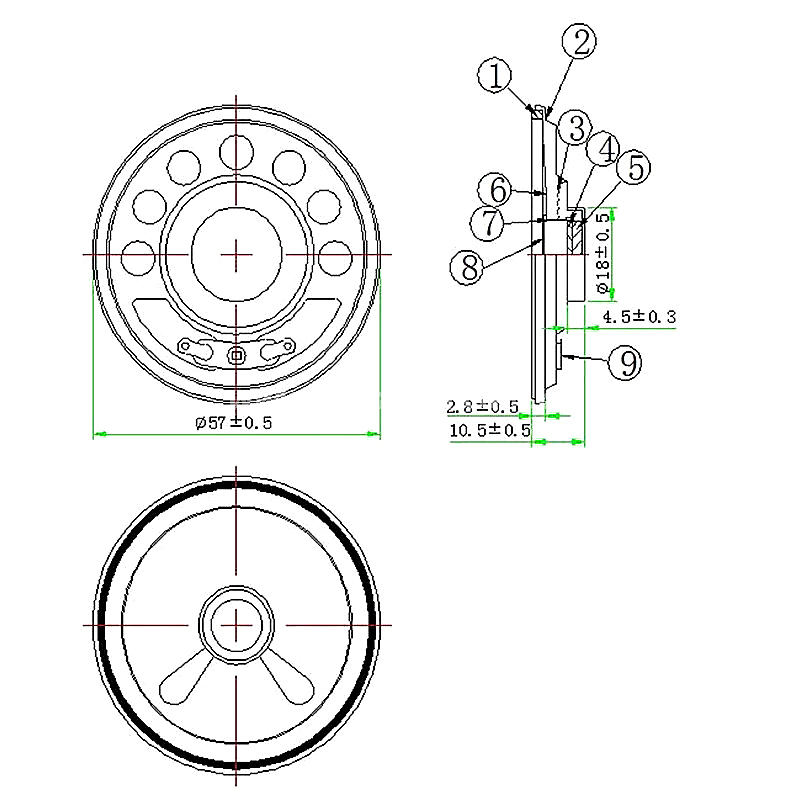

Dimension:Φ57*10.5H mm
Cone Material:Paper
Edge:Paper
Nominal Power:0.5W
Maximum Power:1W
Impedance:50Ω±15%Ω
Voice coil:13.28mm PL+Cu
Fo:500±20%

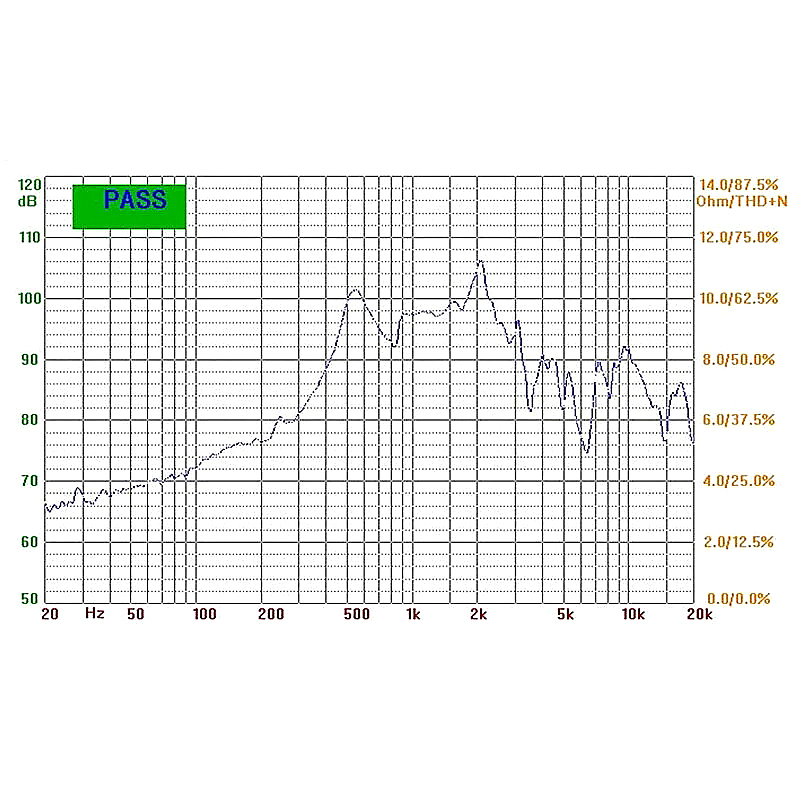

Response:Fo~3KHZ
S.P.L:97±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2.0mm
Net weight:20g±8%
