Medical Equipment Speaker

Loudspeaker 57mm YD57-01-32F32P-R 8 32 ohm Full Range Equipment Speaker Drivers

  • Loudspeaker 57mm YD57-01-32F32P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD57-01-32F32P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 57mm YD57-01-32F32P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD57-01-32F32P-R

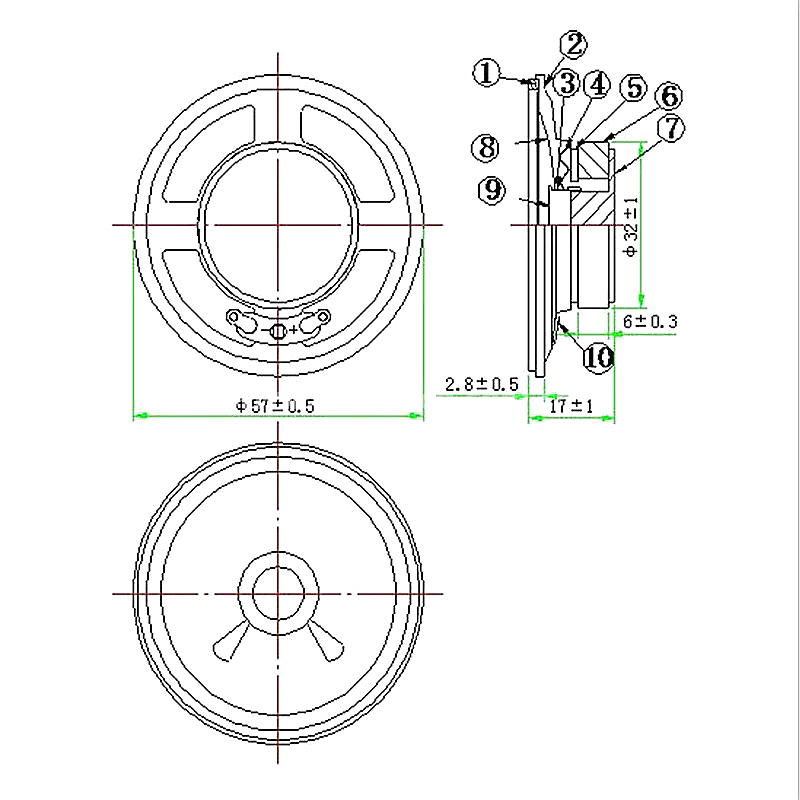

Dimension:Φ57*17H mm
Cone Material:Paper
Edge:Paper
Nominal Power:1W
Maximum Power:2W
Impedance:8Ω±15%Ω
Voice coil:13.28mm PL+Cu
Fo:400±20%

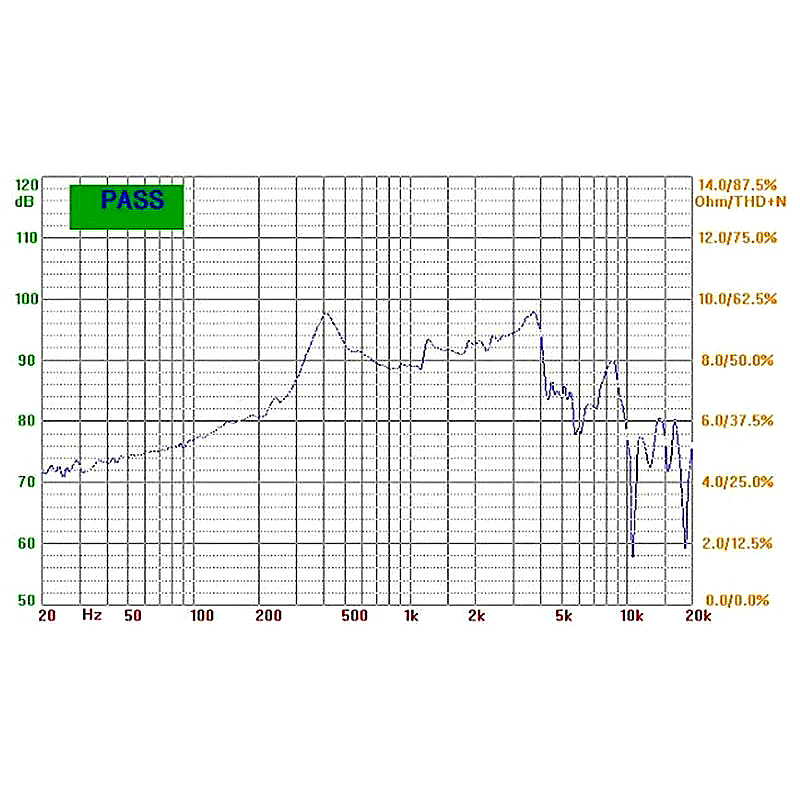

Response:Fo~5KHZ
S.P.L:92±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ32*18*6mm
Net weight:47g±8%
