Loudspeaker

Loudspeaker 53mm YD53-07-4F40P-R Min Full Range Woofer Speaker Drivers

  • Loudspeaker 53mm YD53-07-4F40P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co LtdModelYD53-07-4F40P-RDimension:53*53*30.5H mmCone Material: PaperEdge:Rubber Nominal Power:7WMaximum Powe

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD53-07-4F40P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 53mm YD53-07-4F40P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD53-07-4F40P-R

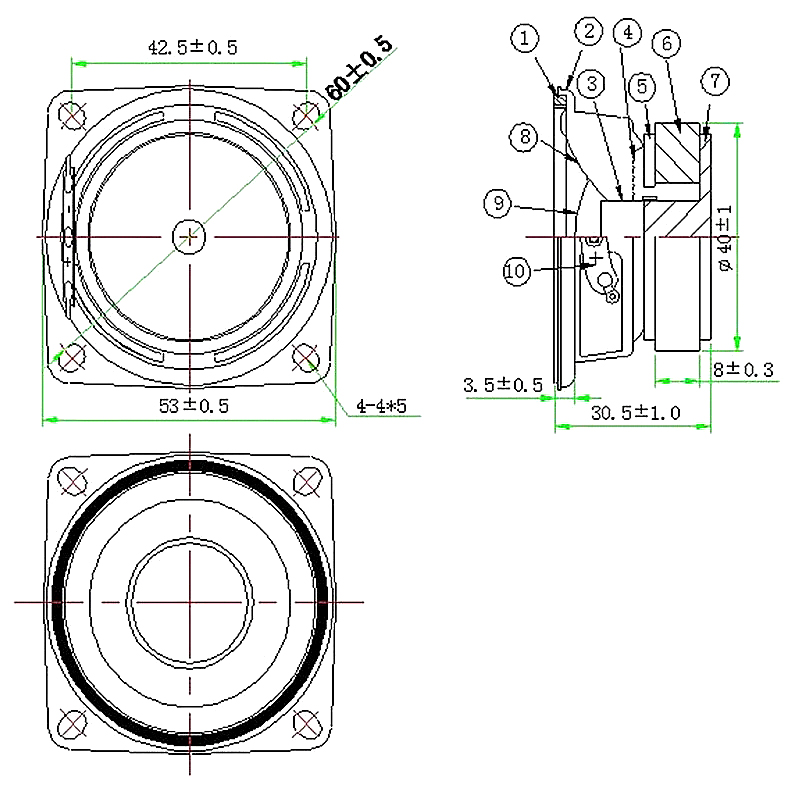

Dimension:53*53*30.5H mm
Cone Material: Paper
Edge:Rubber
Nominal Power:7W
Maximum Power:8W
Impedance:4Ω±15%Ω
Voice coil:Φ13.28mm KSV+Cu
Fo:150±20%
Response:Fo~20KHZ
S.P.L:84±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ40*19*8mm
Net weight:92g±8%
