Loudspeaker

Loudspeaker 53mm YD53-06-4F40P-R Min Full Range Multimedia Speaker Drivers

  • Loudspeaker 53mm YD53-06-4F40P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD53-06-4F40P-RDimension:53*53*30.5H mmCone Material:PaperEdge:RubberNominal Power:3WMaximum Po

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD53-06-4F40P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 53mm YD53-06-4F40P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD53-06-4F40P-R

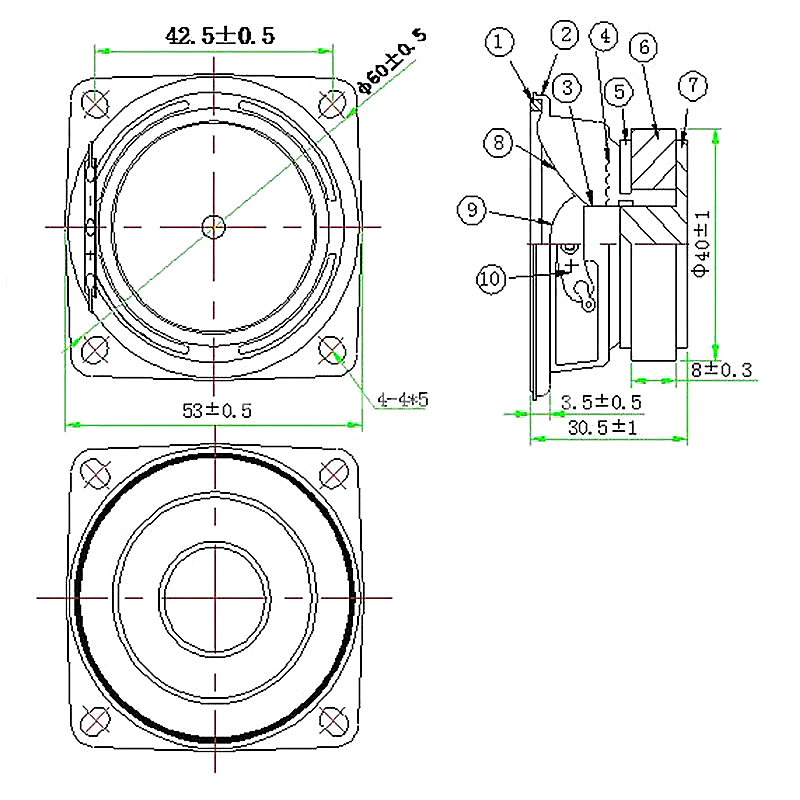

Dimension:53*53*30.5H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:3W
Maximum Power:5W
Impedance:4±15%Ω
Voice coil:Φ13.28mm  KSV+Cu
Fo:160±20%Hz

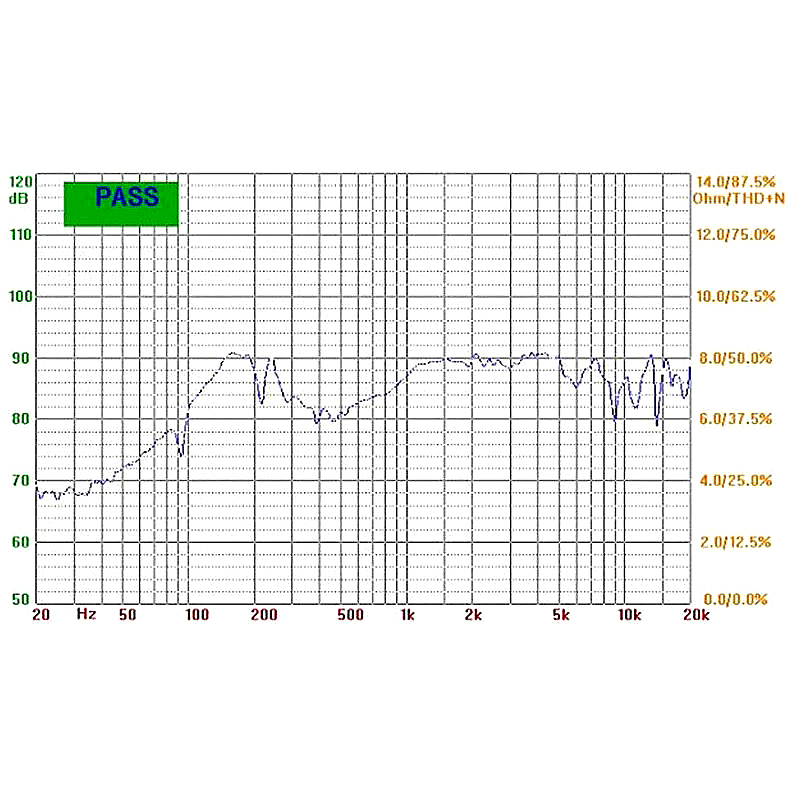

Response:Fo~20KHZ
S.P.L:86±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ40*19*8mm
Net weight:93g±8%
