Product Description

Loudspeaker 53mm YD53-04-8F40P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD53-04-8F40P-R

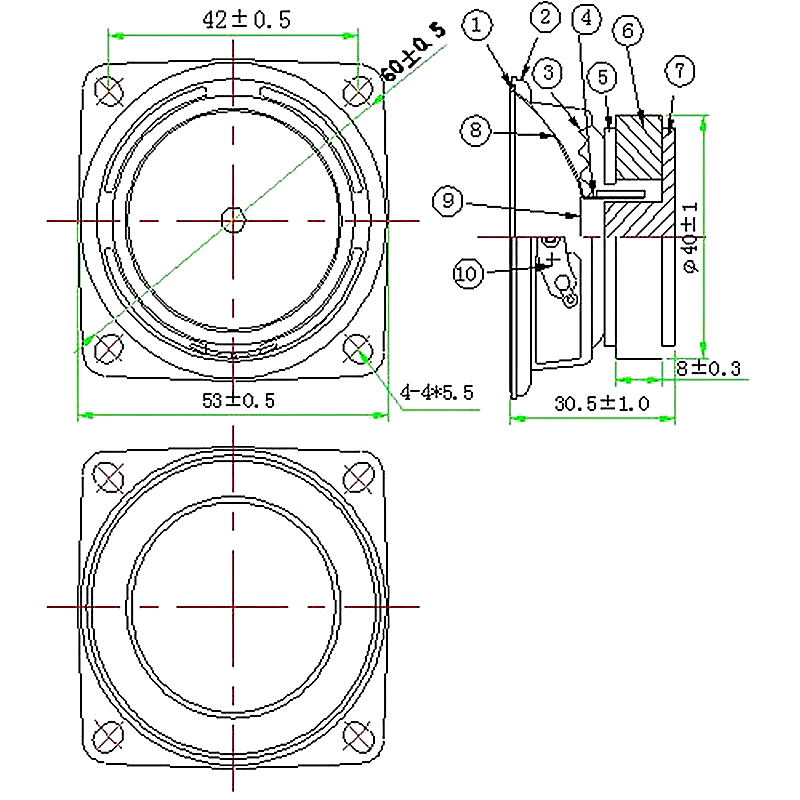

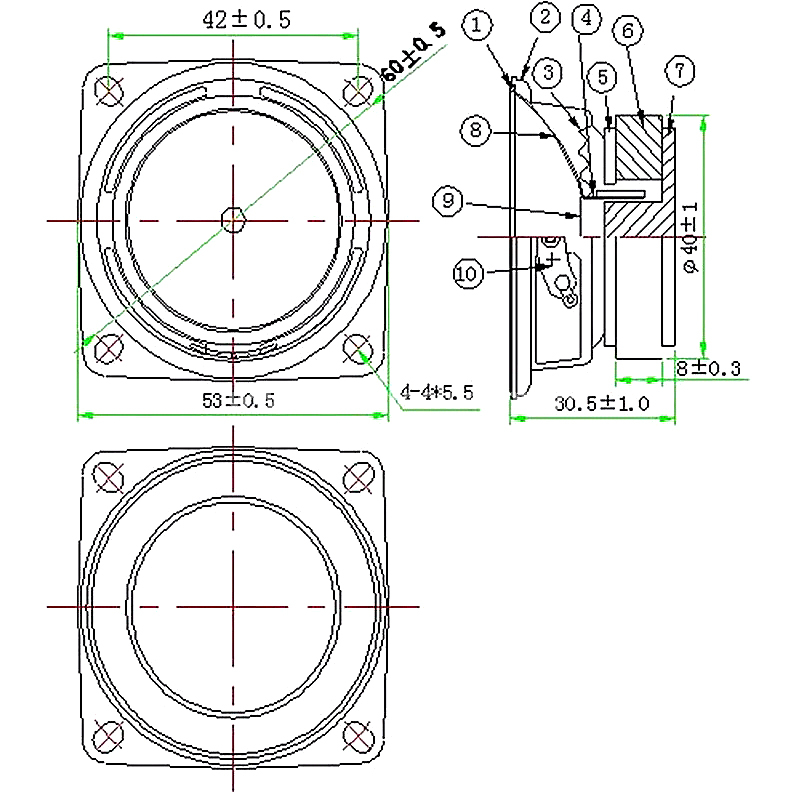

Dimension:53*53*30.5H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:7W
Maximum Power:8W
Impedance:8±15%Ω
Voice coil:Φ13.28mm KSV+Cu
Fo:170±20%Hz

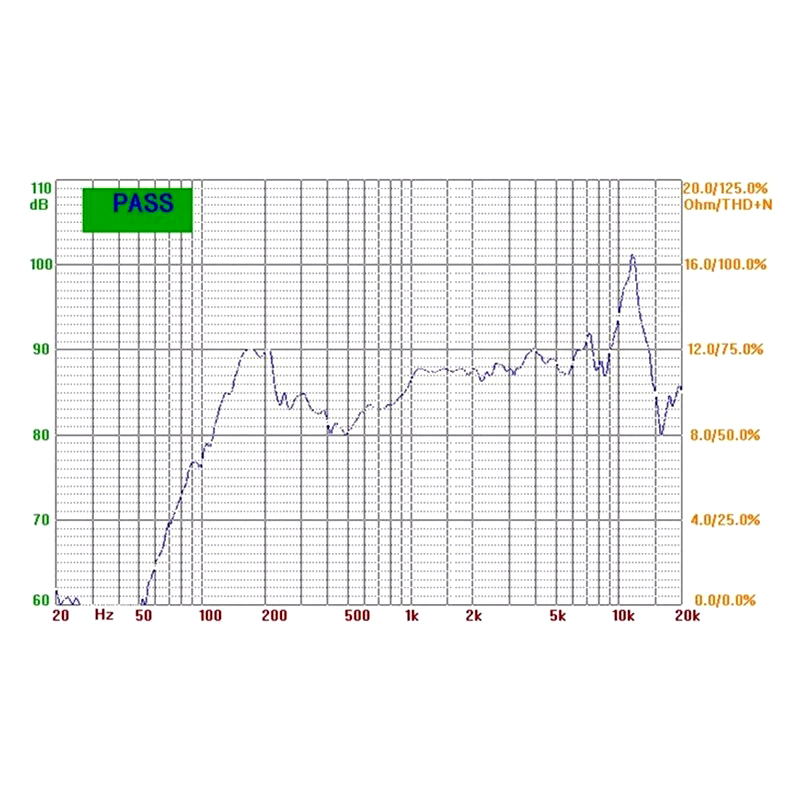

Response:Fo~20KHZ
S.P.L:87±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ40*19*8mm
Net weight:96g±8%
