Loudspeaker 52mm YD52-10-8F45P-R Min Full Range Woofer Speaker Drivers

  • Loudspeaker 52mm YD52-10-8F45P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co LtdModelYD52-10-8F45P-RDimension:52*52*28H mmCone Material: PaperEdge:Rubber Nominal Power:10WMaximum Power

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD52-10-8F45P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 52mm YD52-10-8F45P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD52-10-8F45P-R

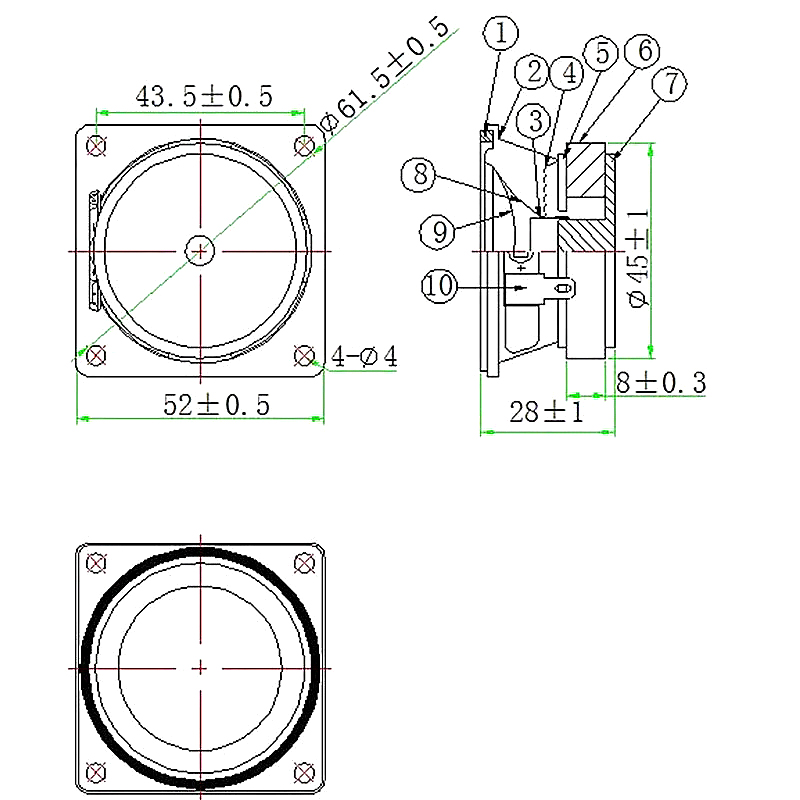

Dimension:52*52*28H mm
Cone Material: Paper
Edge:Rubber
Nominal Power:10W
Maximum Power:12W
Impedance:8Ω±15%Ω
Voice coil:Φ13.28mm KSV+Cu
Fo:200±20%
Response:Fo~20KHZ
S.P.L:85±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ45*22*8mm
Net weight:110g±8%
