Loudspeaker

Loudspeaker 52mm YD52-09-4N12P-R 22mm magnet Woofer Speaker Drivers

  • Loudspeaker 52mm YD52-09-4N12P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co LtdModelYD52-09-4N12P-RDimension:52*68*23H mmCone Material: PaperEdge: FoamNominal Power:2WMaximum Power:3W

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD52-09-4N12P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 52mm YD52-09-4N12P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD52-09-4N12P-R

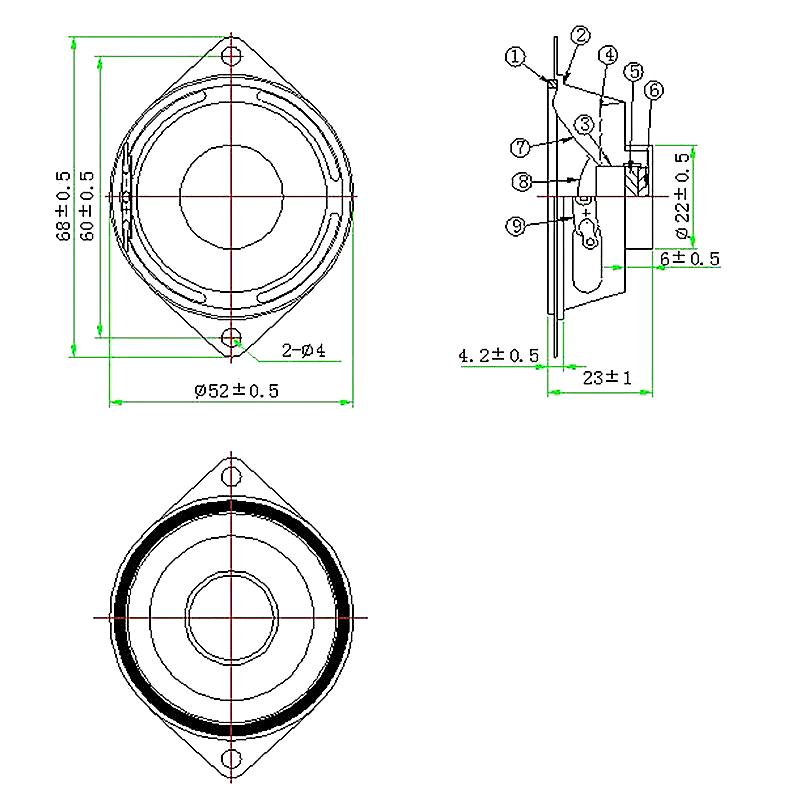

Dimension:52*68*23H mm
Cone Material: Paper
Edge: Foam
Nominal Power:2W
Maximum Power:3W
Impedance:4Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:210±20%Hz

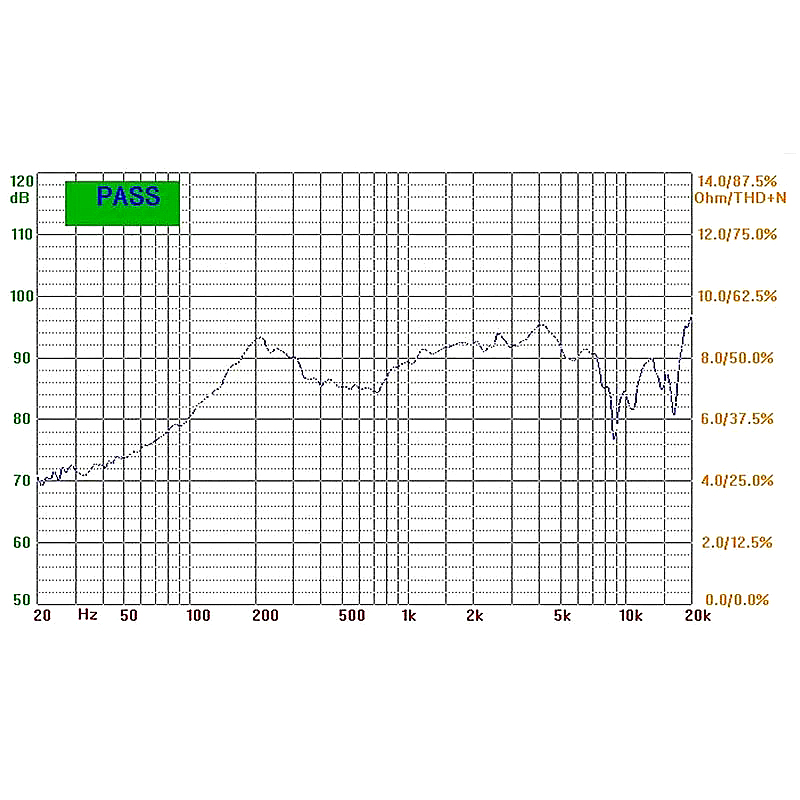

Response:Fo~20KHZ
S.P.L:88±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*3mm
Net weight:32g±8%
