Loudspeaker

Loudspeaker 50mm YD50-34-8F32P-R Min Full Range Equipment Speaker Drivers

  • Loudspeaker 50mm YD50-34-8F32P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co LtdModelYD50-34-8F32P-RDimension:Φ50*16.5H mmCone Material:PaperEdge:PaperNominal Power:0.2WMaximum Powe

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-34-8F32P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 50mm YD50-34-8F32P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD50-34-8F32P-R

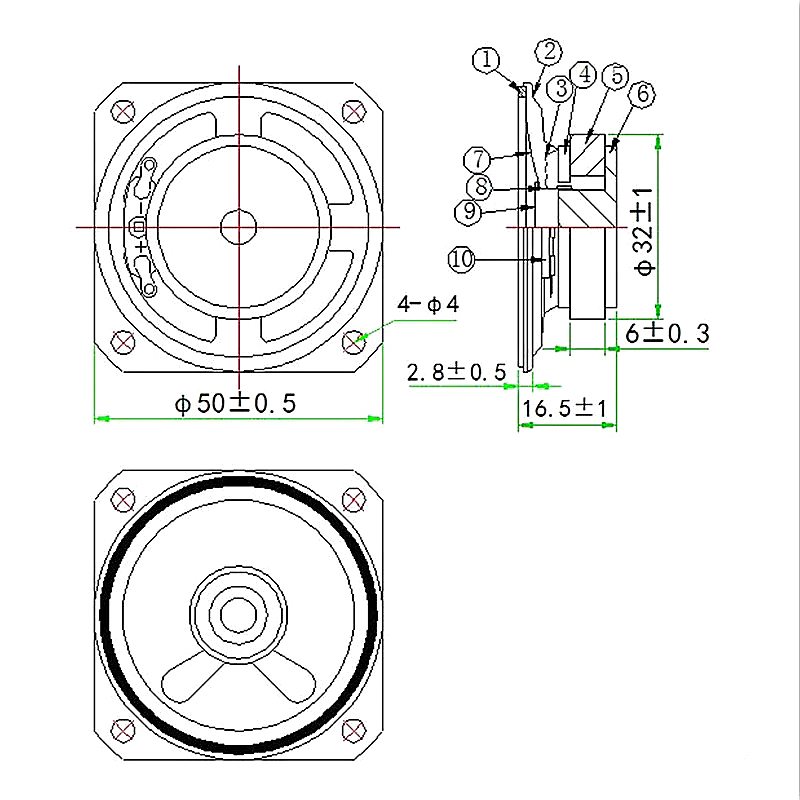

Dimension:Φ50*16.5H mm
Cone Material:Paper
Edge:Paper
Nominal Power:0.2W
Maximum Power:1W
Impedance:8Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:500±20%

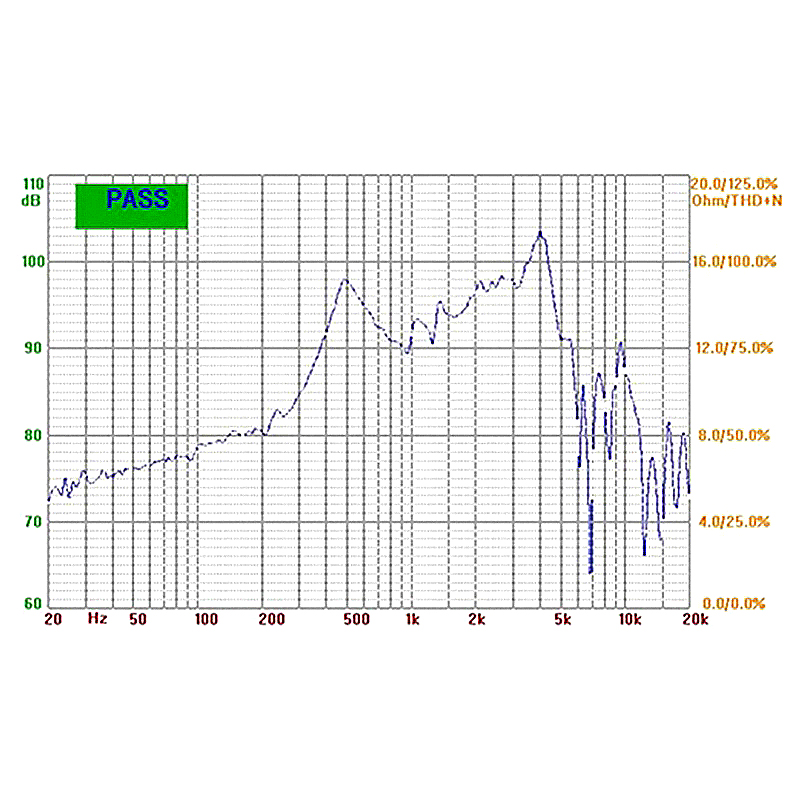

Response:Fo~4.5KHZ
S.P.L:93±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ32*18*6mm
Net weight:50g±8%
