Loudspeaker

Loudspeaker 166mm YD166-51-8F100P-R Min Full Range Woofer Speaker Drivers

  • Loudspeaker 166mm YD166-51-8F100P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co LtdModelYD166-51-8F100P-RDimension:Φ166*76H mmCone Material:PaperEdge:RubberNominal Power:50WMaximum Pow

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD166-51-8F100P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 166mm YD166-51-8F100P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD166-51-8F100P-R

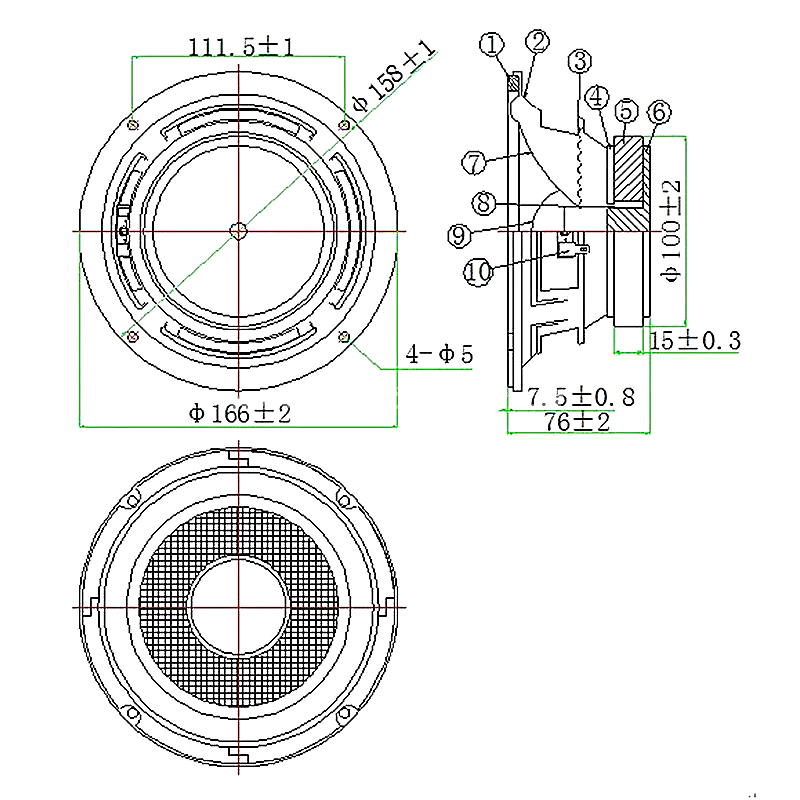

Dimension:Φ166*76H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:50W
Maximum Power:60W
Impedance:8Ω±15%Ω
Voice coil:Φ25.5 ASV+Cu
Fo:60±20%
Response:Fo~10KHZ
S.P.L:93±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ100*40*15mm
Net weight:1000g±8%
