Loudspeaker 166mm YD166-50-8F80P-R Min Full Range Woofer Speaker Drivers

  • Loudspeaker 166mm YD166-50-8F80P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co LtdModelYD166-50-8F80P-RDimension:Φ166*66H mmCone Material:Paper Edge:RubberNominal Power:20WMaximum Powe

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD166-50-8F80P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 166mm YD166-50-8F80P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd



ModelYD166-50-8F80P-R

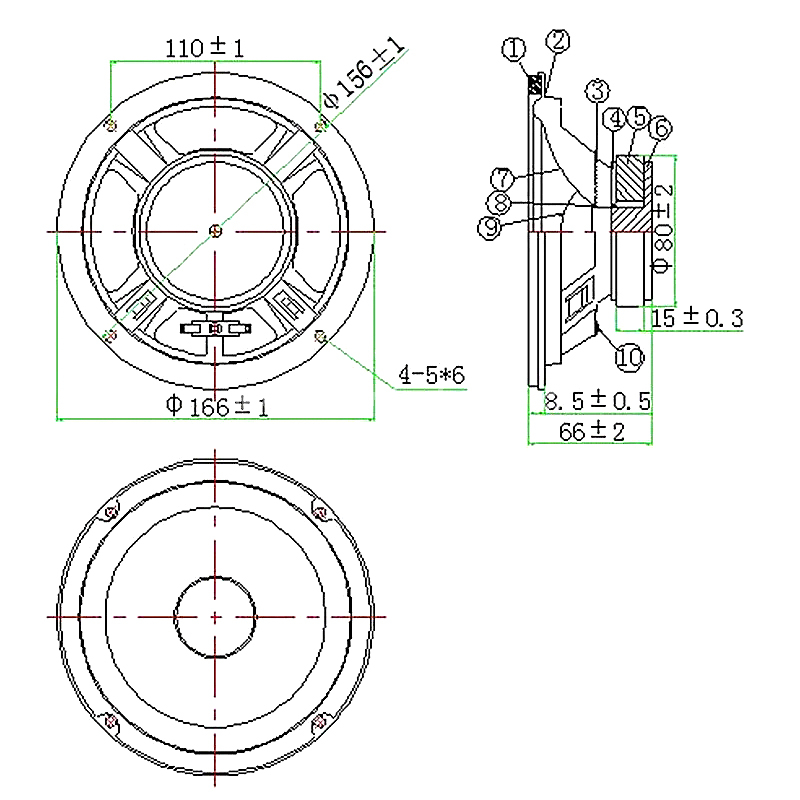

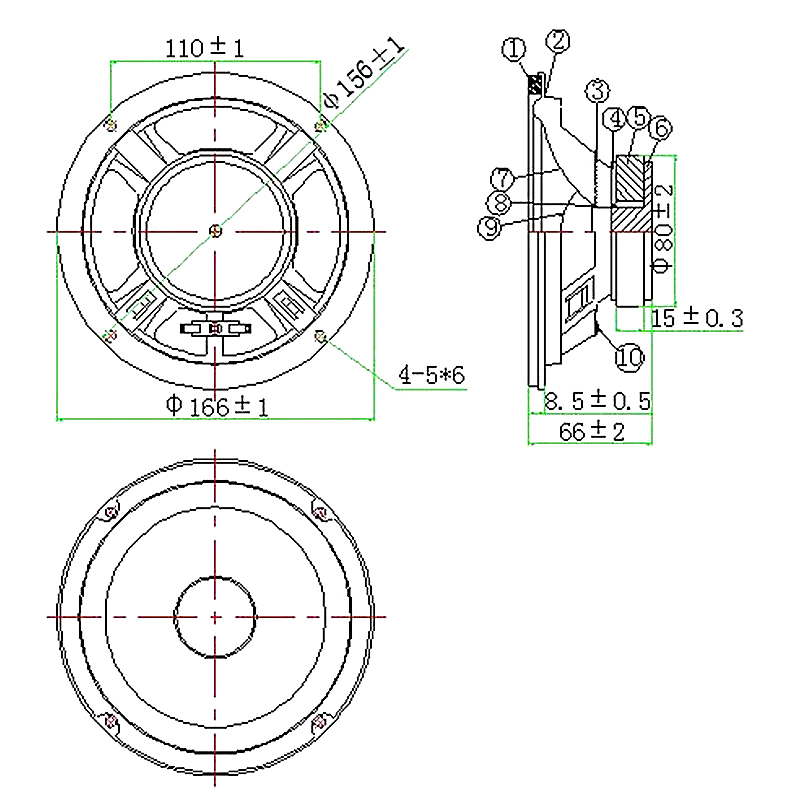

Dimension:Φ166*66H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:20W
Maximum Power:40W
Impedance:8Ω±15%Ω
Voice coil:Φ25.5 ASV+Cu
Fo:65±20%

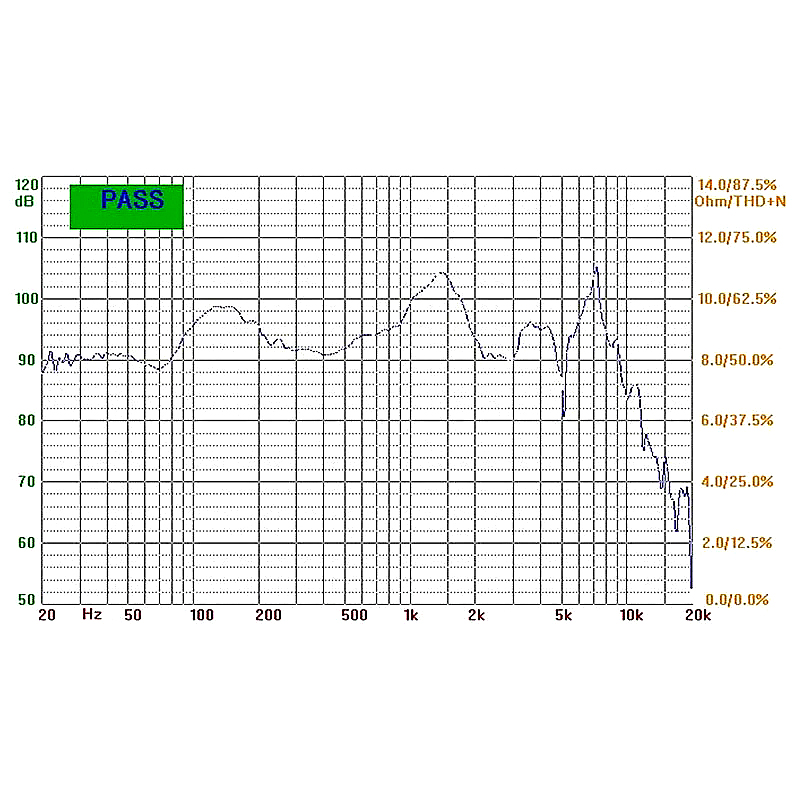

Response:Fo~10KHZ
S.P.L:98±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ80*32*15mm
Net weight:725g±8%
