Product Description

Loudspeaker 166mm YD166-50-4F80C-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD166-50-4F80C-R

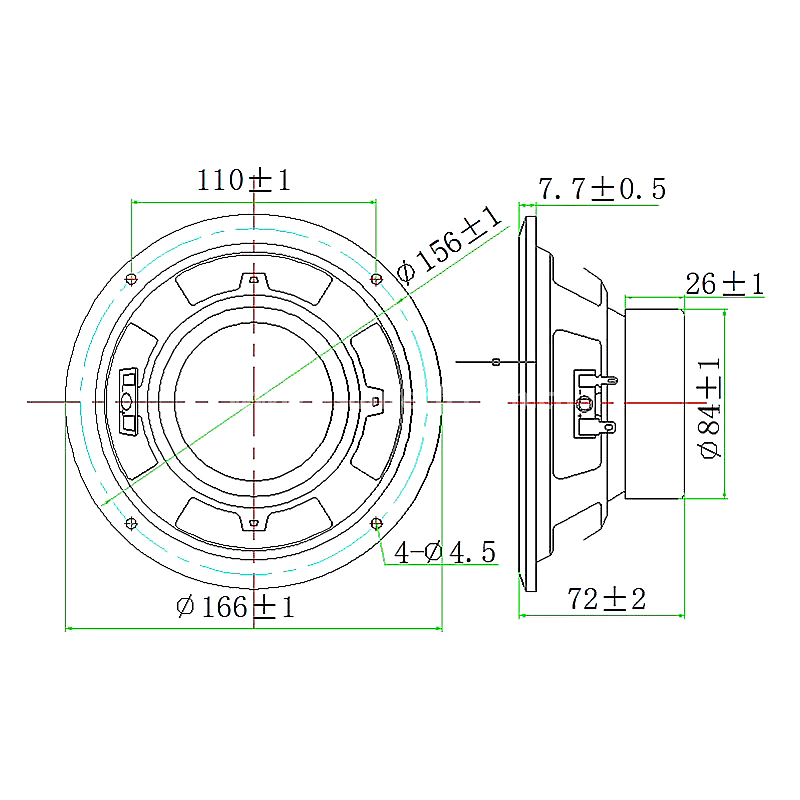

Dimension:Φ166*72H mm
Cone Material:Carbon
Edge:Foam
Nominal Power:60W
Maximum Power:120W
Impedance:4±15%Ω
Voice coil:Φ25.5mm Aluminum
Fo:60±20%Hz

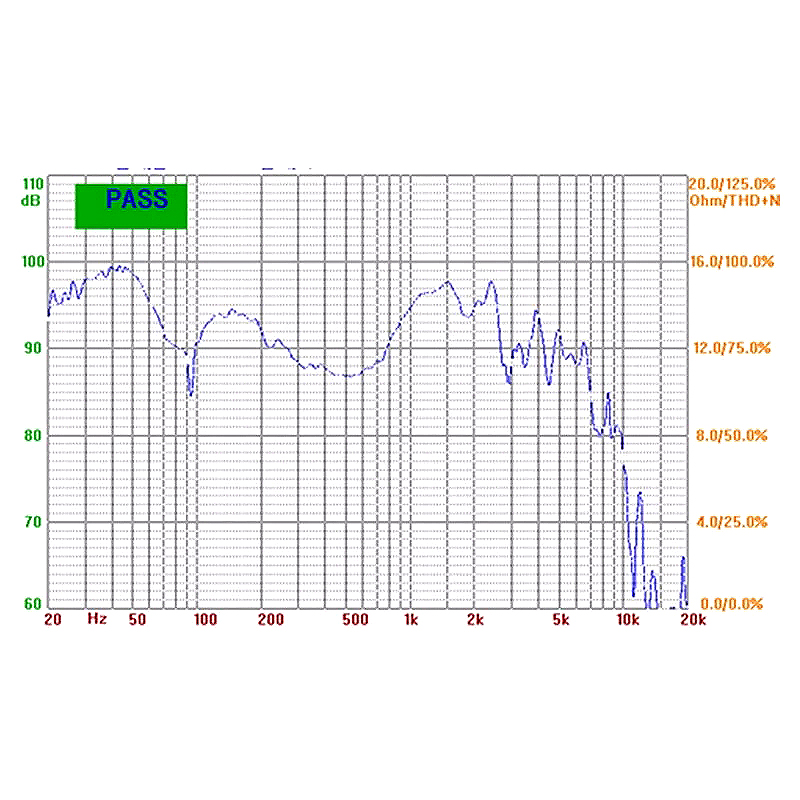

Response:Fo~22KHZ
S.P.L:92±3dB(AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ80*40*15mm
Net weight:1049g±8%
