Loudspeaker

Loudspeaker 165mm YD165-01-8F70P-R Min Full Range car Speaker Drivers

  • Loudspeaker 165mm YD165-01-8F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD165-01-8F70P-RDimension:Φ165*67H mmCone Material:InjectionEdge:Waterproof Nominal Power:30WMaximum

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD165-01-8F70P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 165mm YD165-01-8F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd

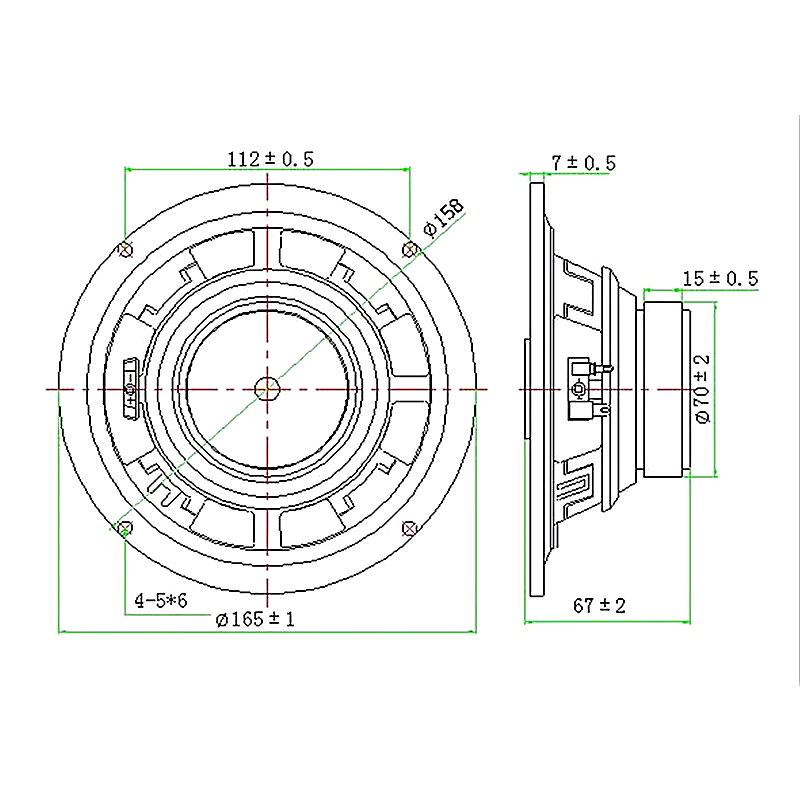

HC166T-3-R8-DRAWING

ModelYD165-01-8F70P-R
Dimension:Φ165*67H mm
Cone Material:Injection
Edge:Waterproof
Nominal Power:30W
Maximum Power:60W
Impedance:8±15%Ω
Voice coil:Φ25.5mm Aluminum
Fo:90±20%Hz

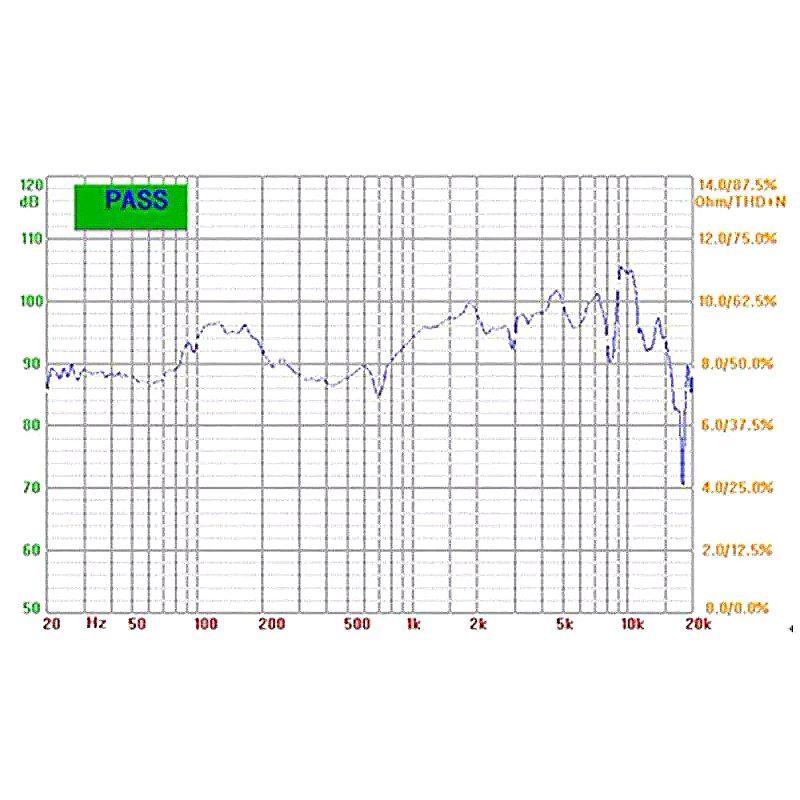

Response:Fo~18KHZ
S.P.L:90±3dB(at0.1W/0.1m, 0.5, 0.8, 1, 2 KHZ)
Magnet Size:Φ70*32*15mm
Net weight:580g±8%
