Loudspeaker

Loudspeaker 158mm YD158-02-4F70P-R Min Full Range car Speaker Drivers

  • Loudspeaker 158mm YD158-02-4F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD158-02-4F70P-RDimension:158*158*61H mmCone Material:PaperEdge:PaperNominal Power:30WMaximum Power:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD158-02-4F70P-R
  • Diameter: 158*158*61H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 158mm YD158-02-4F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD158-02-4F70P-R

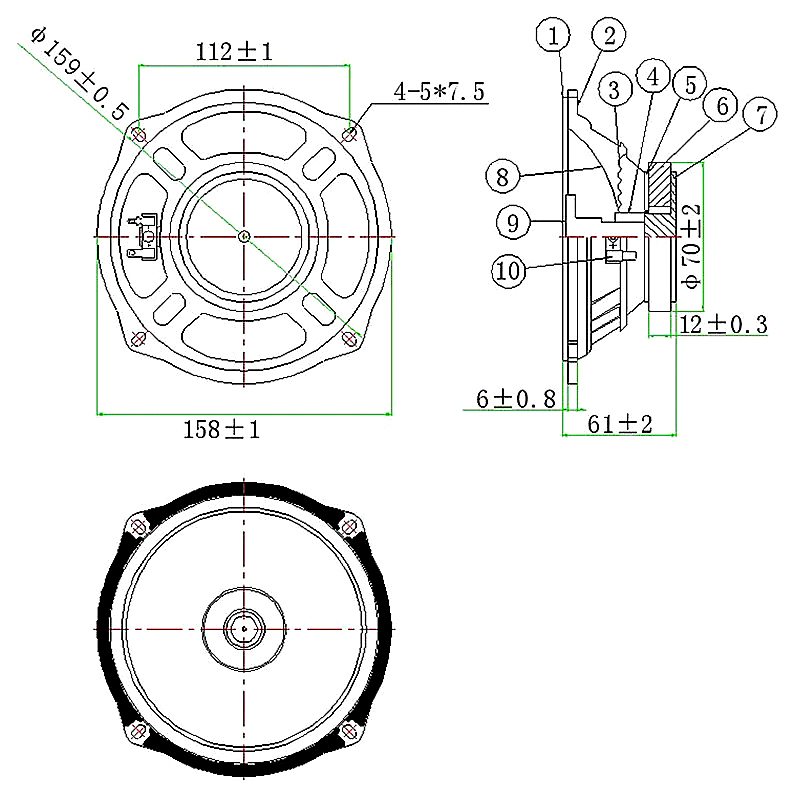

Dimension:158*158*61H mm
Cone Material:Paper
Edge:Paper
Nominal Power:30W
Maximum Power:60W
Impedance:4±15%Ω
Voice coil:Φ19.45 ASV+Cu
Fo:150±20%Hz
Response:Fo~8KHZ
S.P.L:96±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ70*32*12mm
Net weight:442g±8%
