Loudspeaker

Loudspeaker 156mm YD156-01-8F70P-R Min Full Range car Speaker Drivers

  • Loudspeaker 156mm YD156-01-8F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD156-01-8F70P-RDimension:156*156*66H mmCone Material:PaperEdge:PaperNominal Power:30WMaximum Power:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD156-01-8F70P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 156mm YD156-01-8F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD156-01-8F70P-R

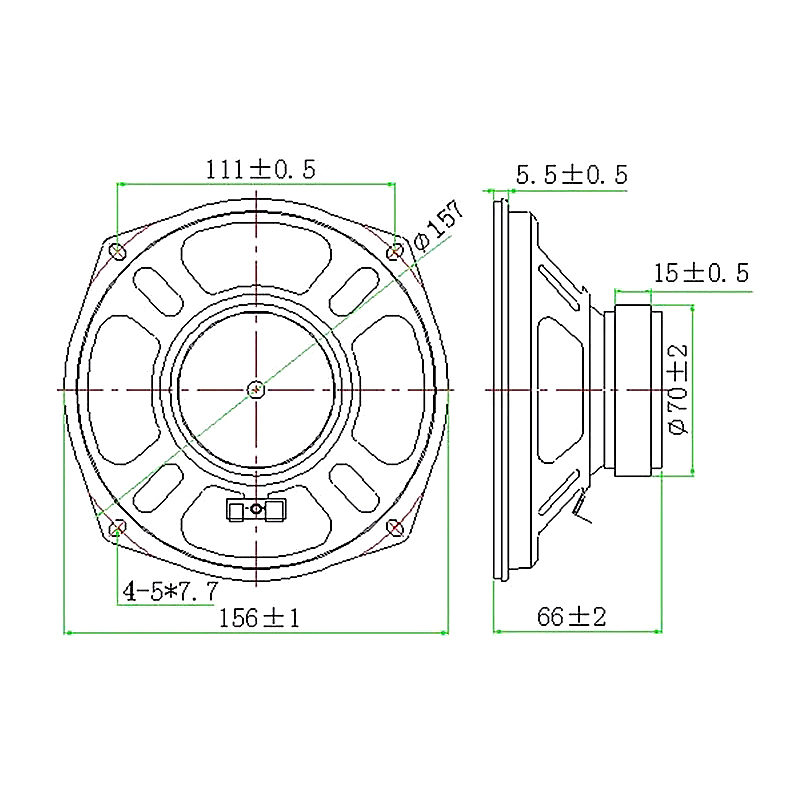

Dimension:156*156*66H mm
Cone Material:Paper
Edge:Paper
Nominal Power:30W
Maximum Power:60W
Impedance:8±15%Ω
Voice coil:Φ19.45mm ASV+Cu
Fo:145±20%Hz

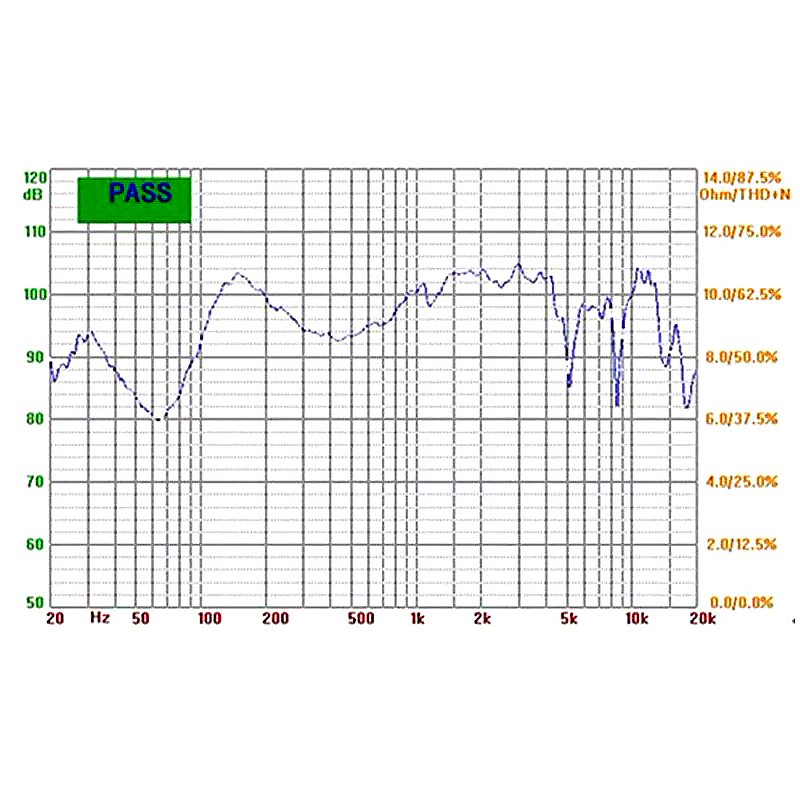

Response:Fo~17KHZ
S.P.L:93±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ70*32*15mm
Net weight:545g±8%
