Product Description

Loudspeaker 136mm YD136-01-8F80P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD136-01-8F80P-R

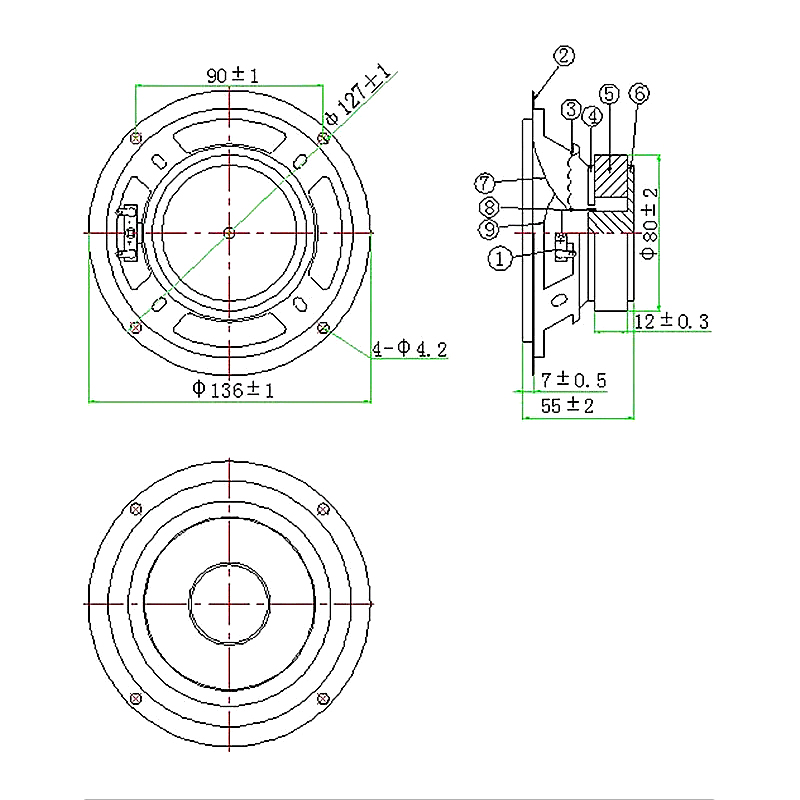

Dimension:Φ136*56H mm
Cone Material:Paper
Edge:Foam
Nominal Power:30W
Maximum Power:50W
Impedance:8Ω±15%Ω
Voice coil:Φ25.5 ASV+Cu
Fo:85±20%

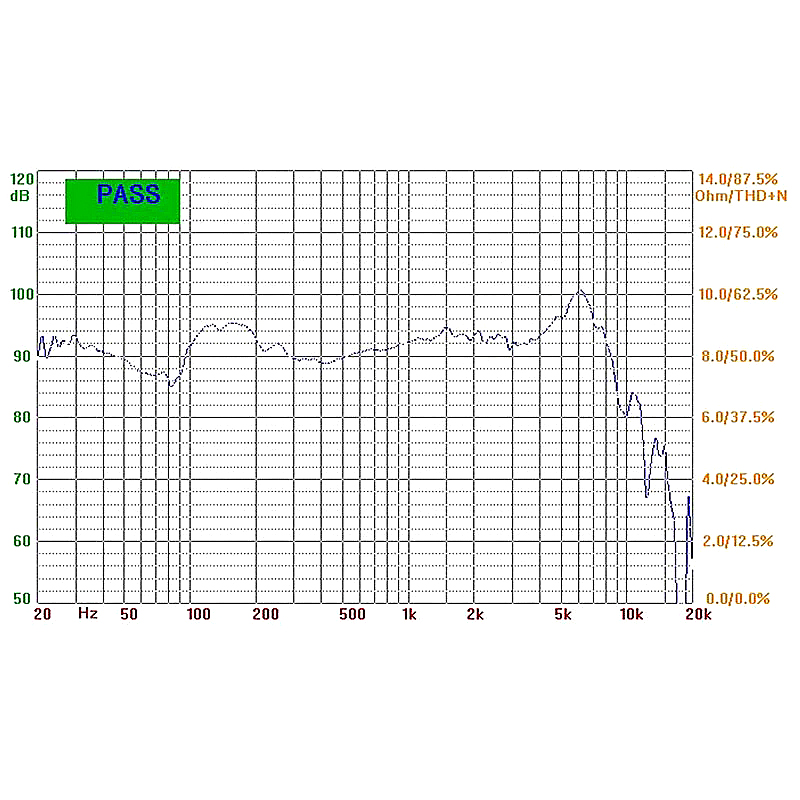

Response:Fo~8KHZ
S.P.L:91±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ80*32*12 Hmm
Net weight:600g±8%
