Product Description

Loudspeaker 134mm YD134-01-8F60P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD134-01-8F60P-R

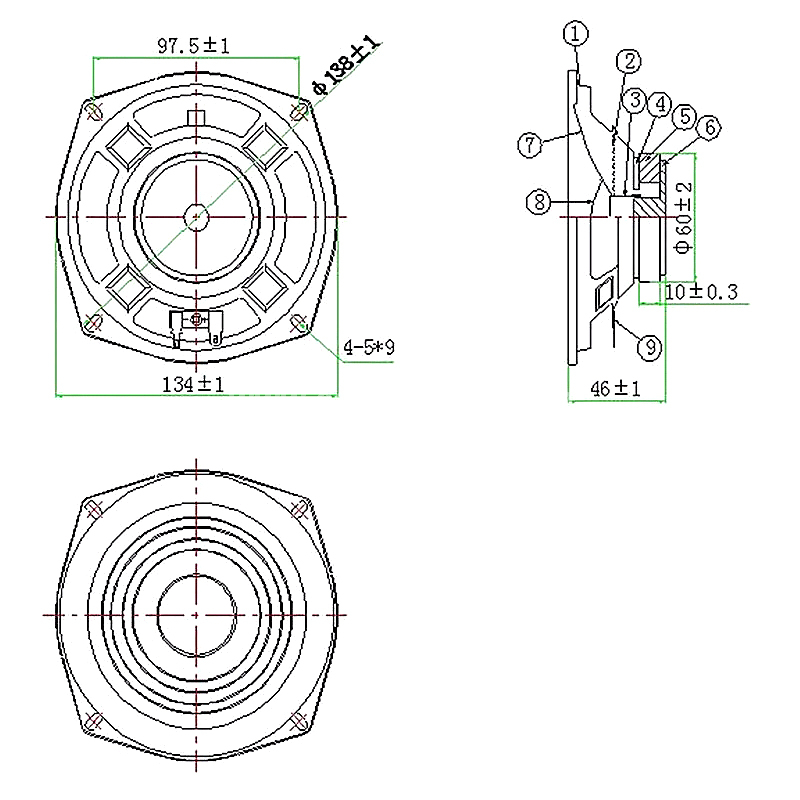

Dimension:134*134*46H mm
Cone Material:Paper
Edge:Paper
Nominal Power:20W
Maximum Power:25W
Impedance:8±15%Ω
Voice coil:Φ19.45 ASV+Cu
Fo:250±20%Hz

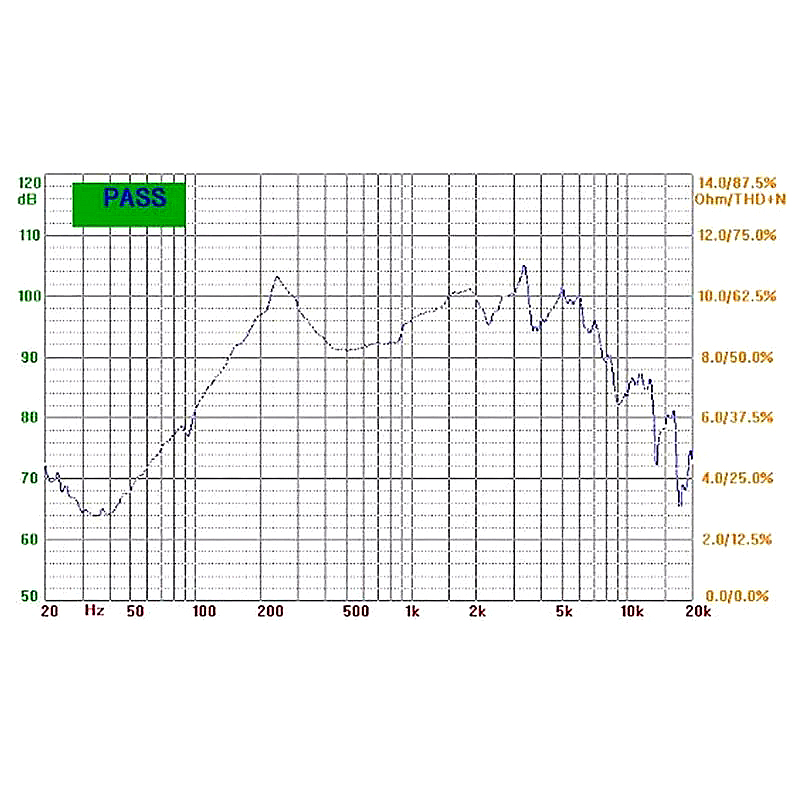

Response:Fo~8KHZ
S.P.L:94±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ60*32*10mm
Net weight:280g±8%
