Product Description

Loudspeaker 133mm YD133-01-4F70P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD133-01-4F70P-R

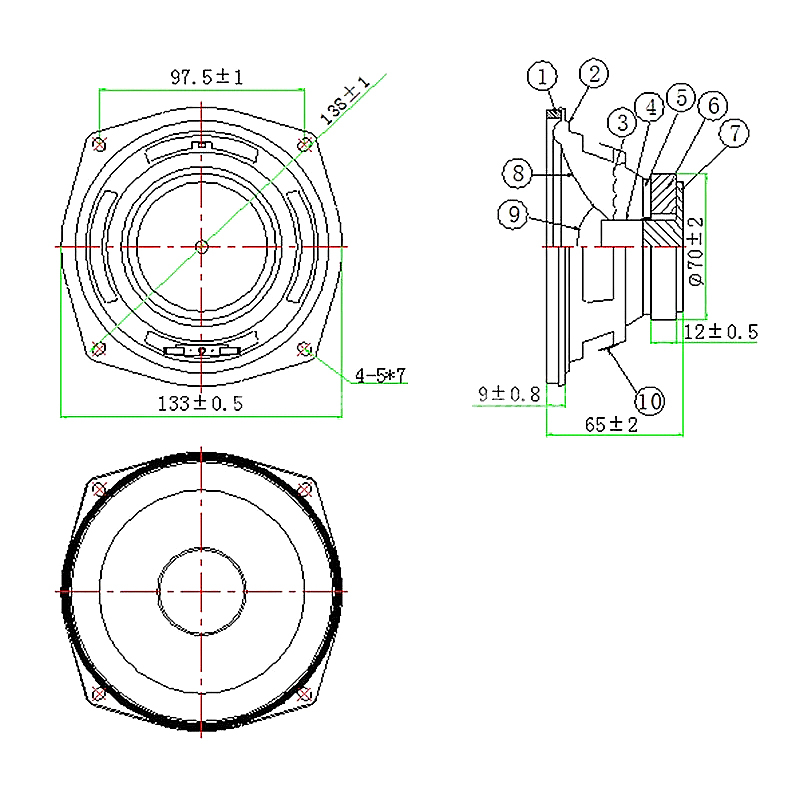

Dimension:133*133*65H mm
Cone Material:Paper
Edge:Foam
Nominal Power:20W
Maximum Power:25W
Impedance:4Ω±15%Ω
Voice coil:Φ25.5mm ASV+Cu
Fo:70±20%
Response:Fo~13KHZ
S.P.L:86±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ70*32*12mm
Net weight:475g±8%
