Medical Equipment Speaker

Loudspeaker 131mm YD131-16-4F55P-R Min Full Range car Speaker Drivers

  • Loudspeaker 131mm YD131-16-4F55P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD131-16-4F55P-RDimension:131*102*33H mmCone Material:PaperEdge:ClothNominal Power:5WMaximum Power:1

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD131-16-4F55P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 131mm YD131-16-4F55P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD131-16-4F55P-R

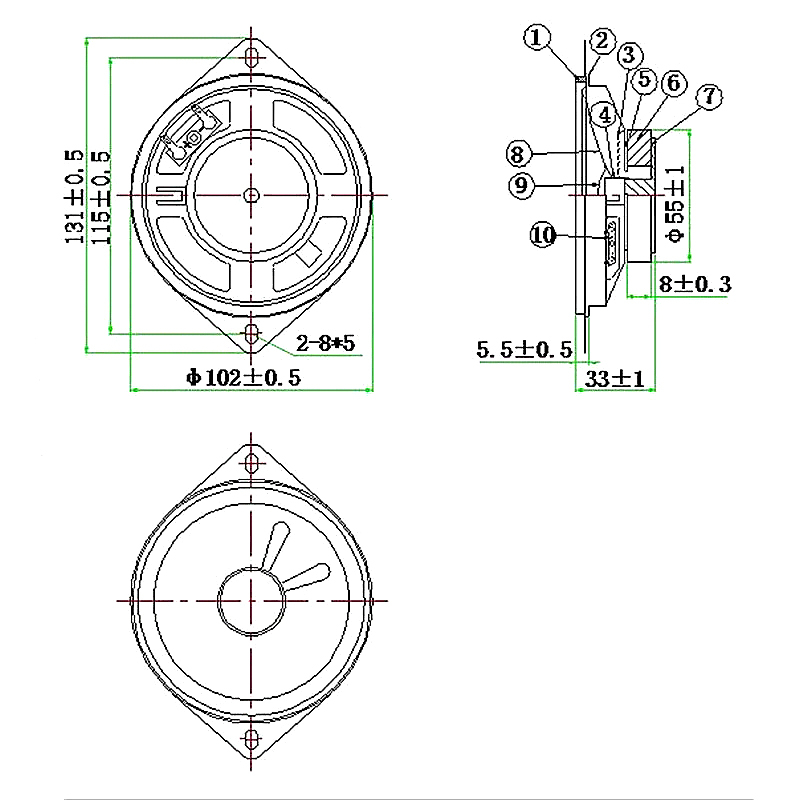

Dimension:131*102*33H mm
Cone Material:Paper
Edge:Cloth
Nominal Power:5W
Maximum Power:10W
Impedance:4±15%Ω
Voice coil:Φ14.28mm ASV+Cu
Fo:170±20%Hz

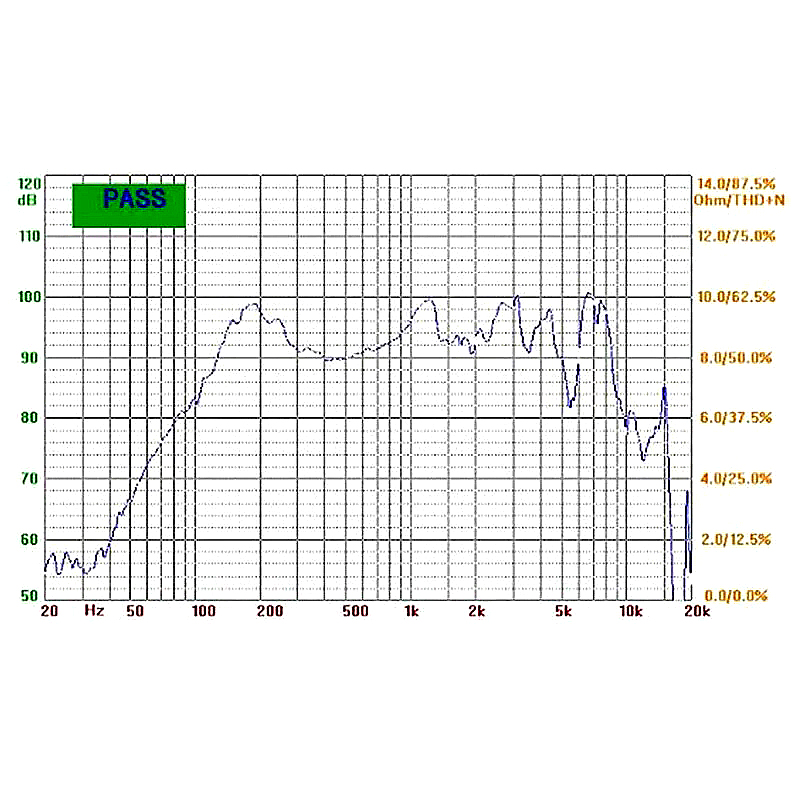

Response:Fo~10KHZ
S.P.L:95±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ55*Φ25*8mm
Net weight:176g±8%
