Loudspeaker 130mm YD130-52-8F60P-R Min Full Range Woofer Speaker Drivers

  • Loudspeaker 130mm YD130-52-8F60P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co LtdModelYD130-52-8F60P-RDimension:130*48.5H mmCone Material:Paper Edge:FoamNominal Power:30WMaximum Power

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD130-52-8F60P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 130mm YD130-52-8F60P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD130-52-8F60P-R

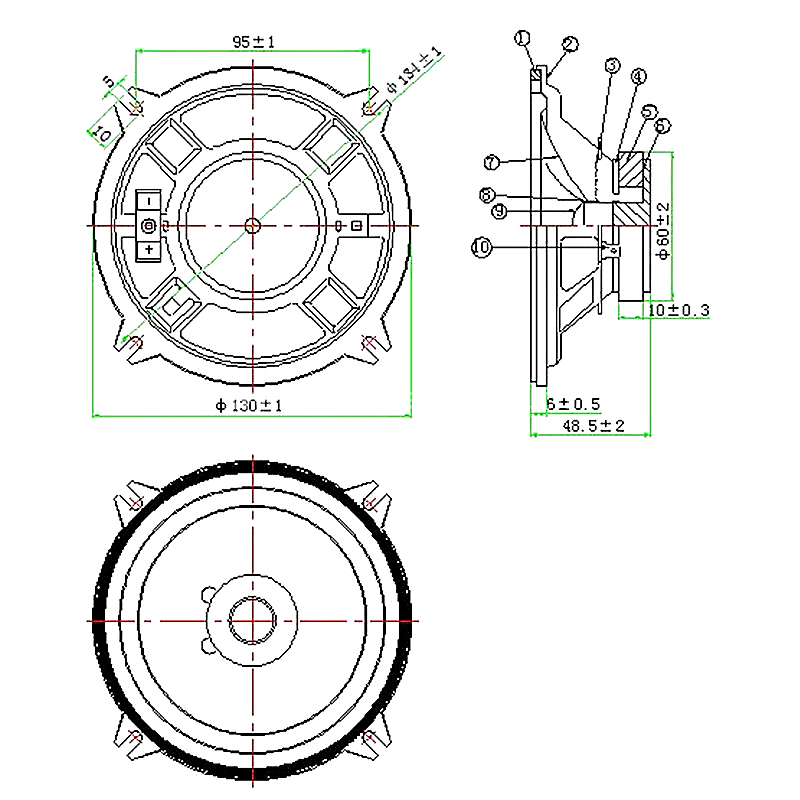

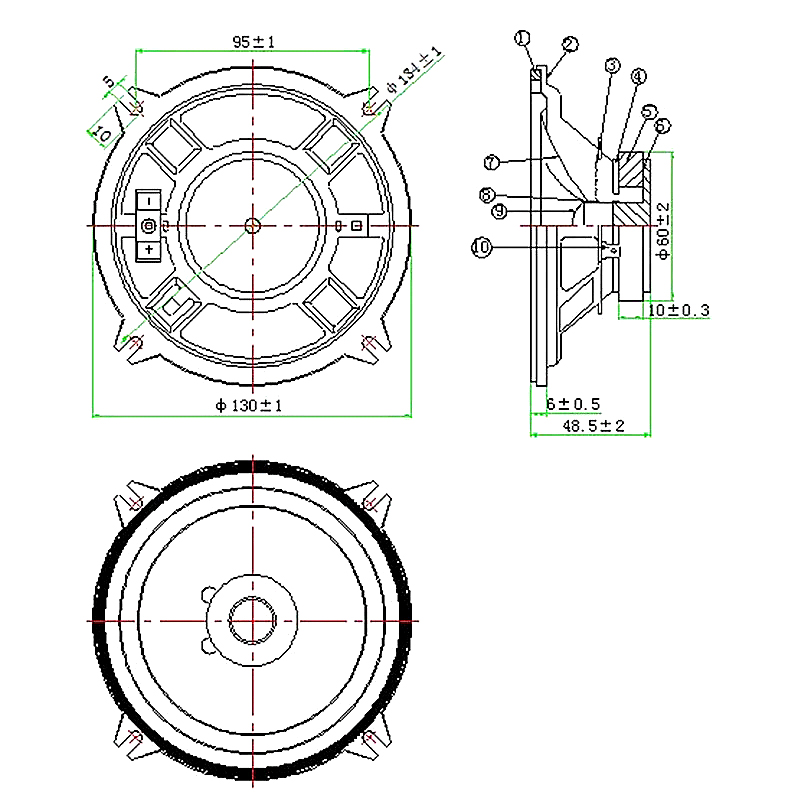

Dimension:130*48.5H mm
Cone Material:Paper
Edge:Foam
Nominal Power:30W
Maximum Power:35W
Impedance:8Ω±15%Ω
Voice coil:Φ19.45mm ASV+Cu
Fo:120±20%

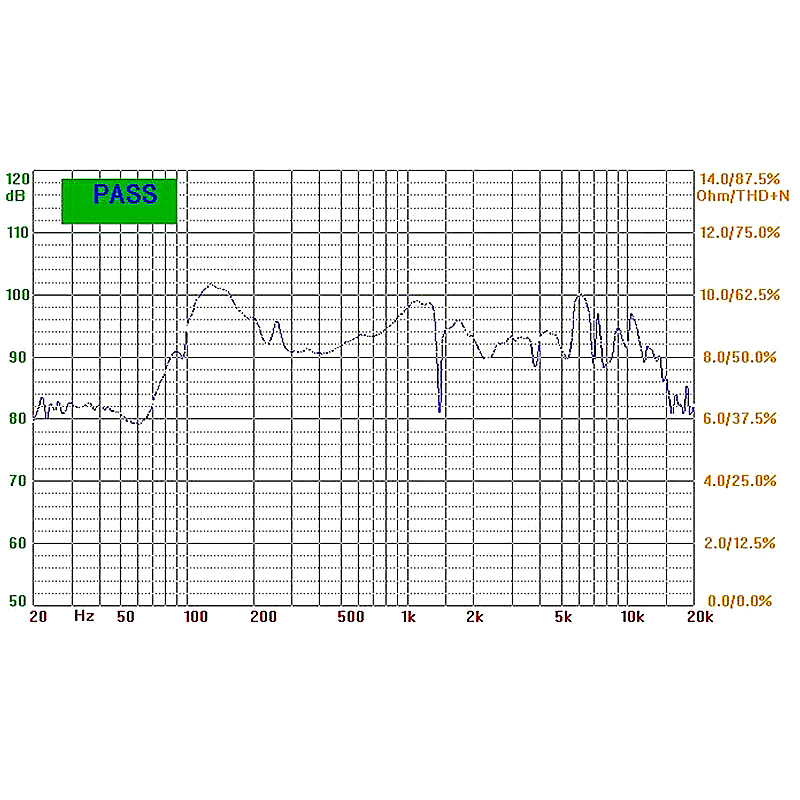

Response:Fo~20KHZ
S.P.L:93±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ60*32*10mm Y30
Net weight:300g±8%
