Loudspeaker

Loudspeaker 130mm YD130-51-8F70P-R Min Full Range Woofer Speaker Drivers

  • Loudspeaker 130mm YD130-51-8F70P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co LtdModelYD130-51-8F70P-RDimension:Φ130*50H mmCone Material:PPEdge:RubberNominal Power:10WMaximum Power:12

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD130-51-8F70P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 130mm YD130-51-8F70P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD130-51-8F70P-R

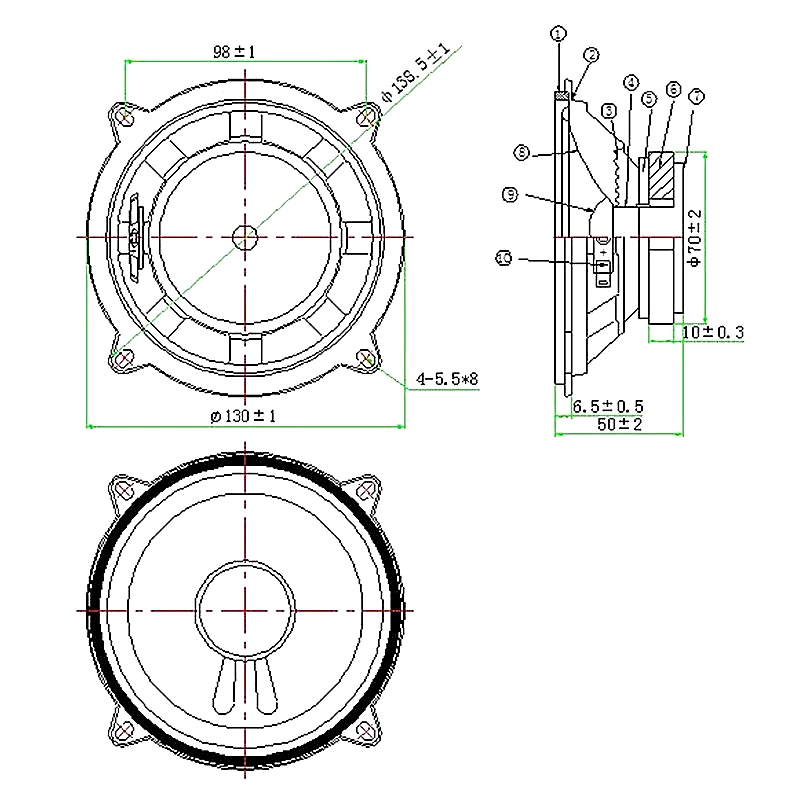

Dimension:Φ130*50H mm
Cone Material:PP
Edge:Rubber
Nominal Power:10W
Maximum Power:12W
Impedance:8Ω±15%Ω
Voice coil:Φ25.5mm ASV+Cu
Fo:80±20%

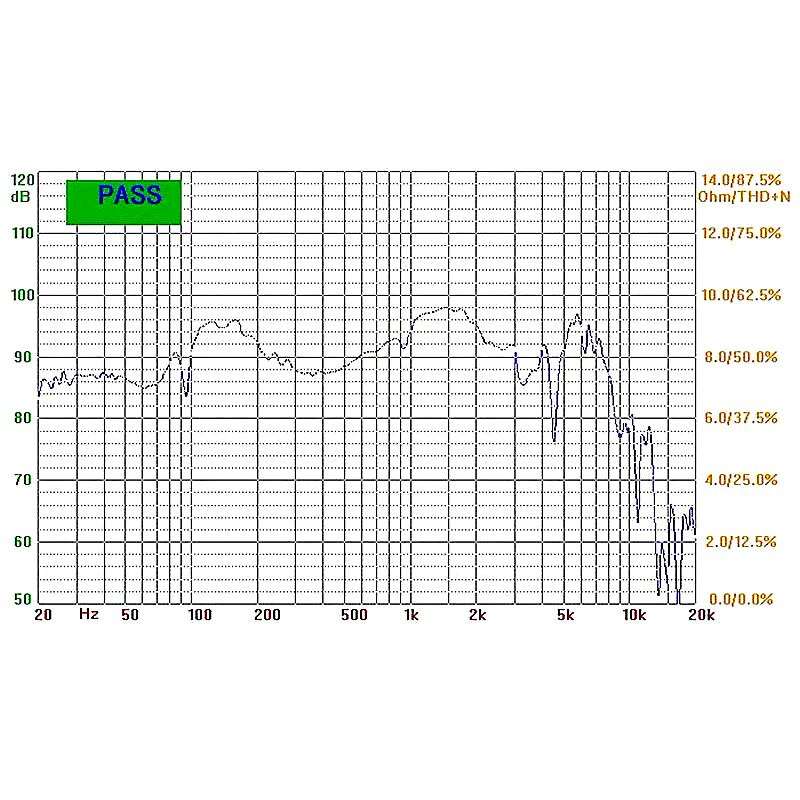

Response:Fo~8KHZ
S.P.L:93±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ70*32*10mm
Net weight:415g±8%
