Product Description

Loudspeaker 129mm YD129-02-8F80P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD129-02-8F80P-R

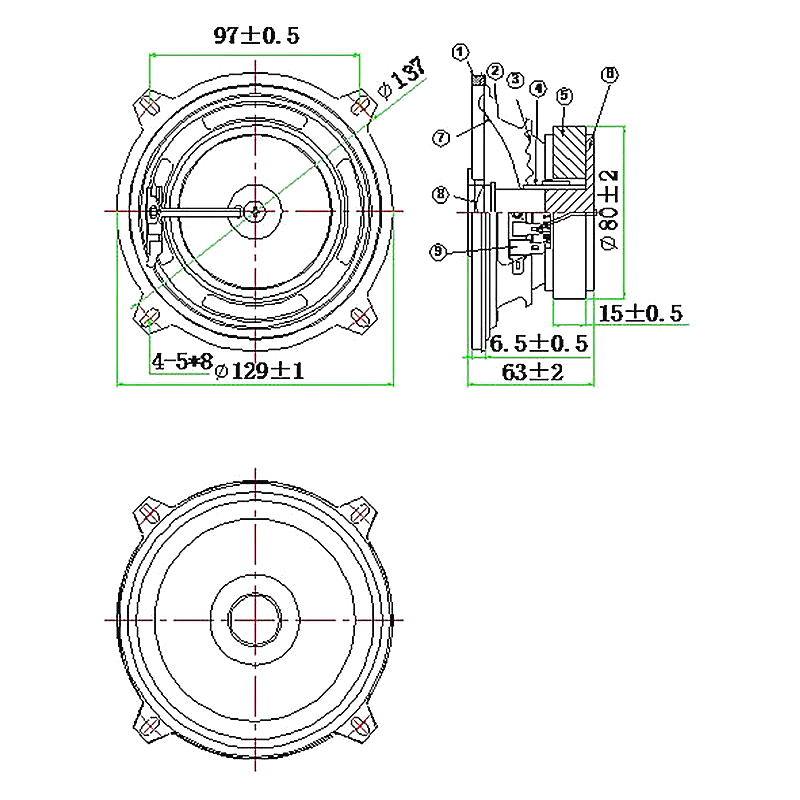

Dimension:Φ129*63H mm
Cone Material:Injection
Edge:Black plating
Nominal Power:45W
Maximum Power:90W
Impedance:8±15%Ω
Voice coil:Φ25.5mm Aluminum+ Φ20mm NdFeB silk tweeter + division electric capacity
Fo:85±20%Hz

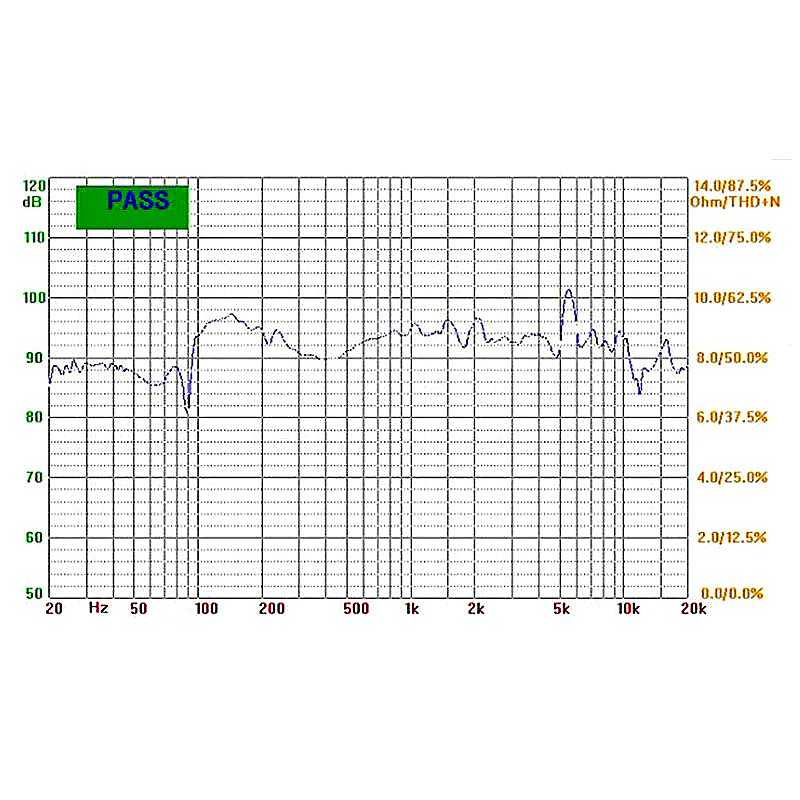

Response:Fo~20KHZ
S.P.L:91±3dB(at0.1W/0.1m, 0.5, 0.8, 1, 2 KHZ)
Magnet Size:Φ80*32*15mm
Net weight:720g±8%
