Product Description

Loudspeaker 105mm YD105-01-4F70P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD105-01-4F70P-R

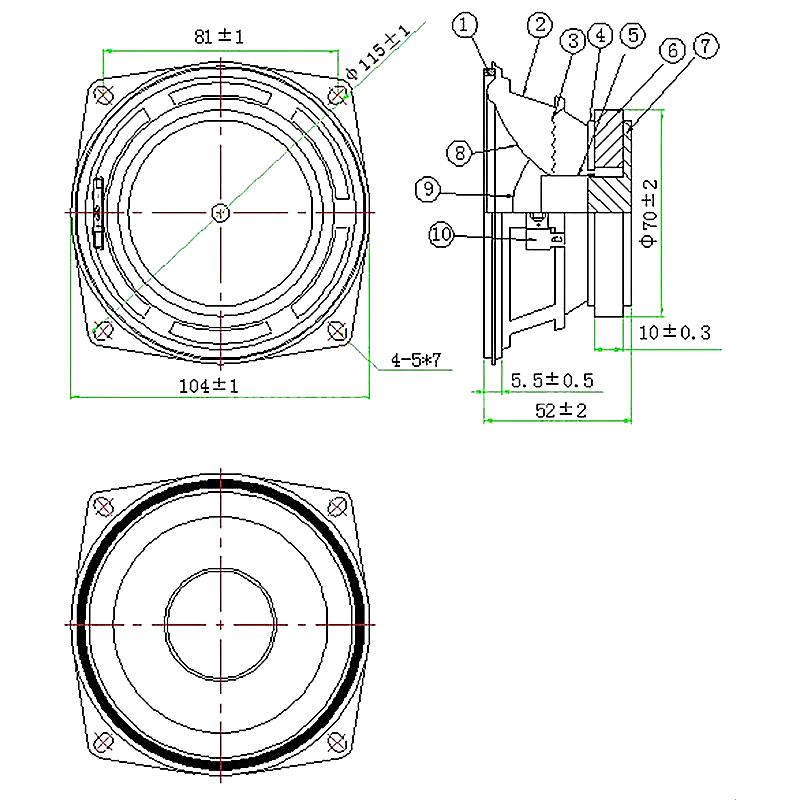

Dimension:105*105*52H mm
Cone Material:Knit
Edge:Rubber
Nominal Power:15W
Maximum Power:20W
Impedance:4Ω±15%Ω
Voice coil:Φ25.5mm ASV+Cu
Fo:90±20%

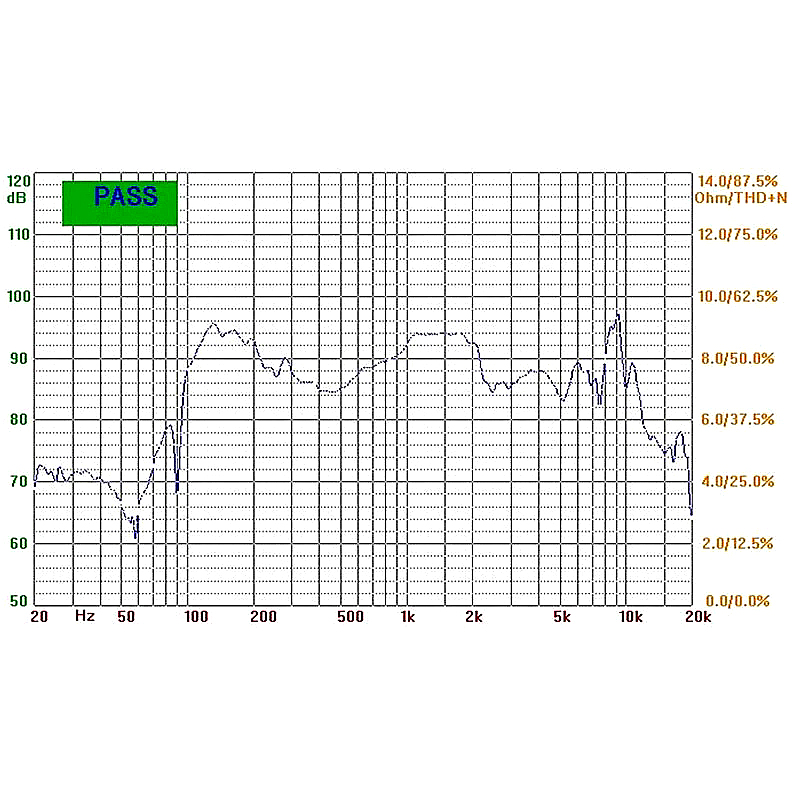

Response:Fo~10KHZ
S.P.L:91±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ70*32*10mm
Net weight:385g±8%
