Loudspeaker

Loudspeaker 104mm YD104-03-8F70P-R Min Full Range car Speaker Drivers

  • Loudspeaker 104mm YD104-03-8F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD104-03-8F70P-RDimension:104*104*52H mmCone Material:PaperEdge:RubberNominal Power:8WMaximum Power:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD104-03-8F70P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 104mm YD104-03-8F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD104-03-8F70P-R

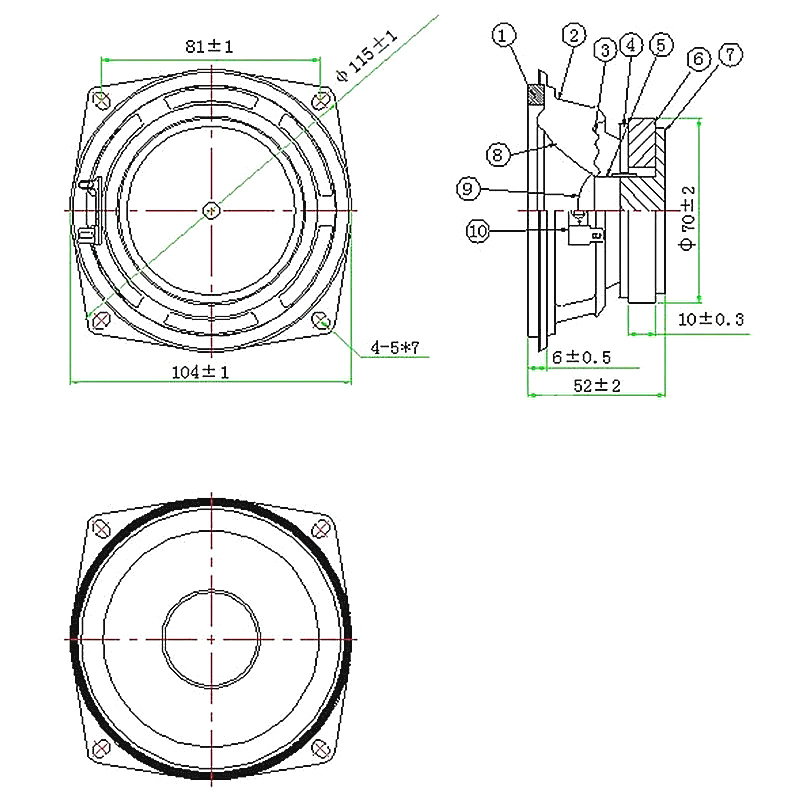

Dimension:104*104*52H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:8W
Maximum Power:10W
Impedance:8±15%Ω
Voice coil:Φ25.5mm ASV+Cu
Fo:150±20%Hz

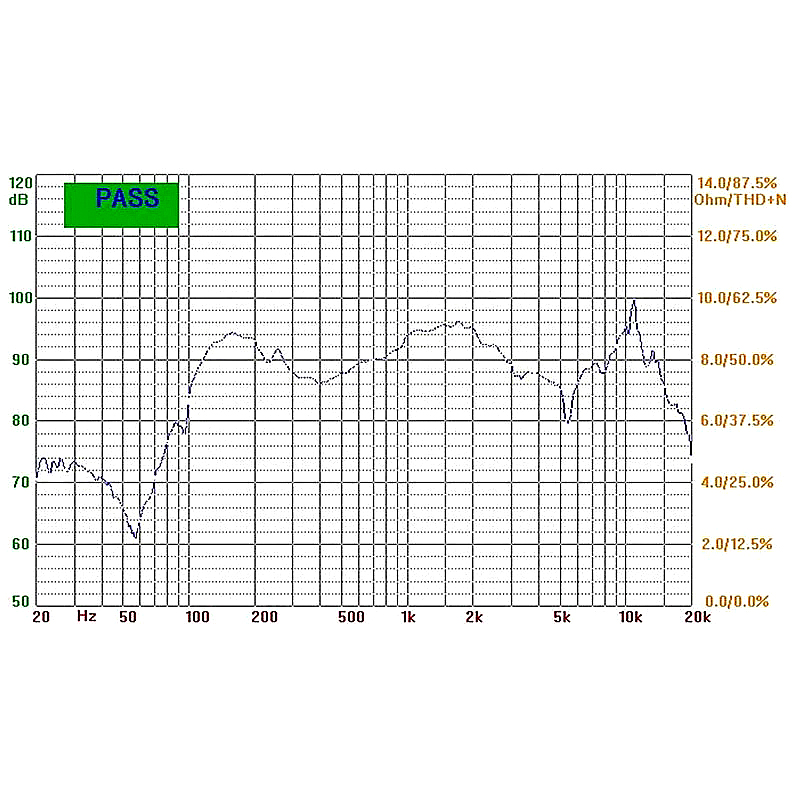

Response:Fo~15KHZ
S.P.L:92±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ70*32*10mm
Net weight:385g±8%
