Loudspeaker

Loudspeaker 104mm YD104-02-4F70P-R Min Full Range car Speaker Drivers

  • Loudspeaker 104mm YD104-02-4F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD104-02-4F70P-RDimension:104*104*58H mmCone Material:PaperEdge:RubberNominal Power:15WMaximum Power

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD104-02-4F70P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 104mm YD104-02-4F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD104-02-4F70P-R

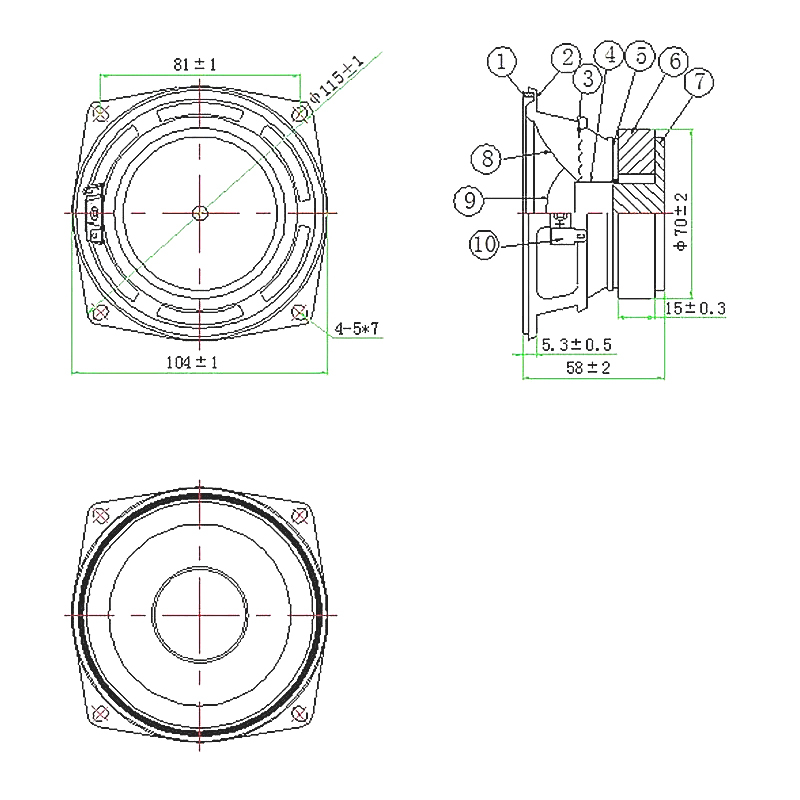

Dimension:104*104*58H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:15W
Maximum Power:20W
Impedance:4±15%Ω
Voice coil:Φ25.5mm ASV+Cu
Fo:80±20%Hz
Response:Fo~5KHZ
S.P.L:88±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ70*32*15mm
Net weight:405g±8%
