Loudspeaker 104mm YD104-01-6F70P-R Min Full Range Multimedia Speaker Drivers

  • Loudspeaker 104mm YD104-01-6F70P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD104-01-6F70P-RDimension:104*104*52H mmCone Material:PaperEdge:RubberNominal Power:20WMaximu

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD104-01-6F70P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 104mm YD104-01-6F70P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD104-01-6F70P-R

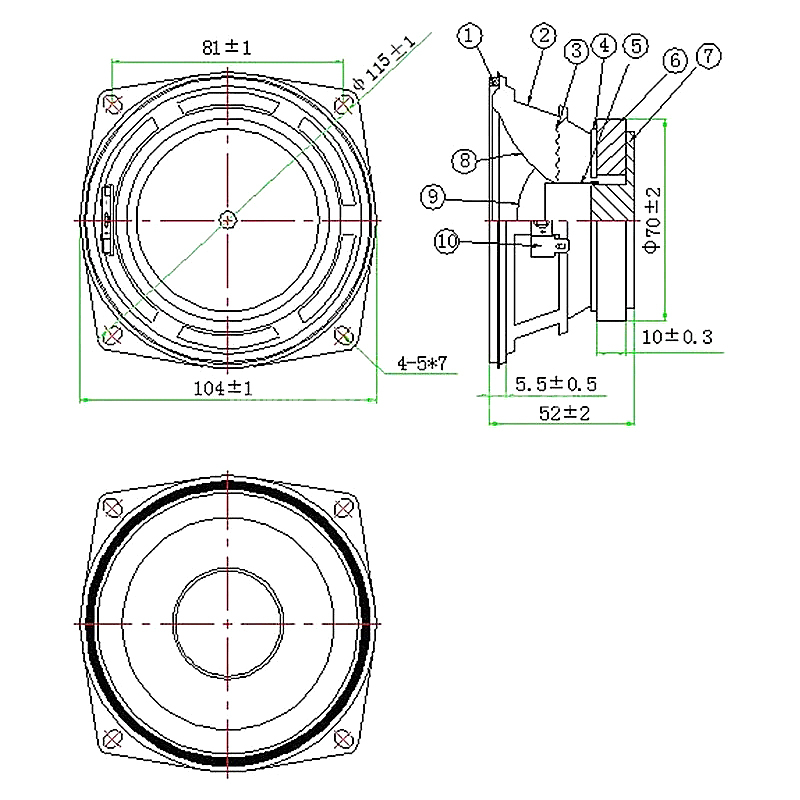

Dimension:104*104*52H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:20W
Maximum Power:25W
Impedance:6±15%Ω
Voice coil:Φ25.5mm ASV+Cu
Fo:100±20%Hz
Response:Fo~10KHZ
S.P.L:91±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ70*32*10mm
Net weight:385g±8%
