Loudspeaker 104mm YD104-01-4F60P-R Min Full Range car Speaker Drivers

  • Loudspeaker 104mm YD104-01-4F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD104-01-4F60P-RDimension:104*104*29H mmCone Material:PaperEdge:FoamNominal Power:8WMaximum Power:10

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD104-01-4F60P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 104mm YD104-01-4F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD104-01-4F60P-R

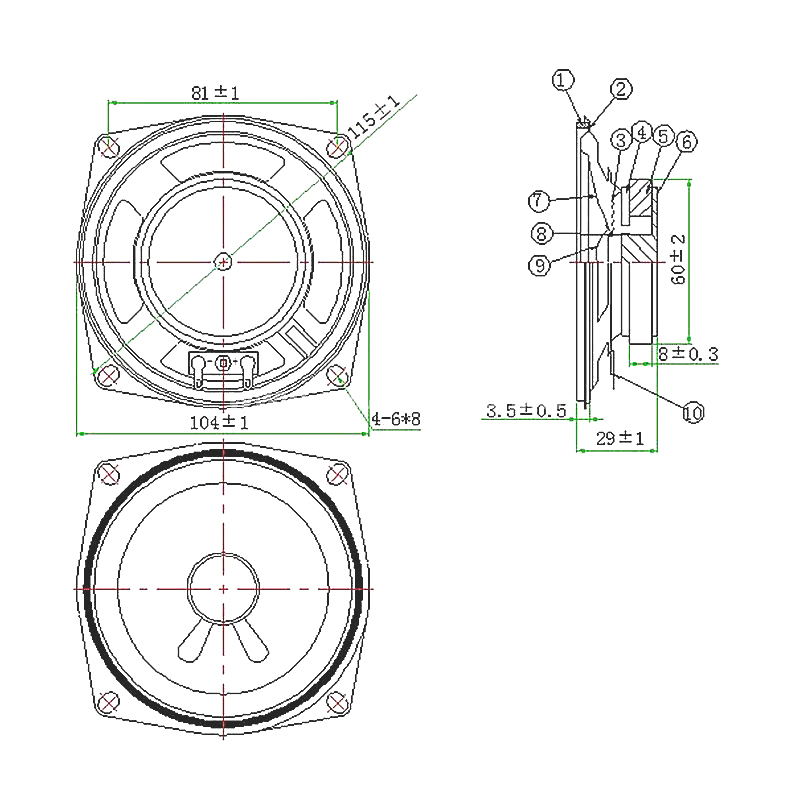

Dimension:104*104*29H mm
Cone Material:Paper
Edge:Foam
Nominal Power:8W
Maximum Power:10W
Impedance:4±15%Ω
Voice coil:Φ19.45mmAluminum
Fo:125±20%Hz

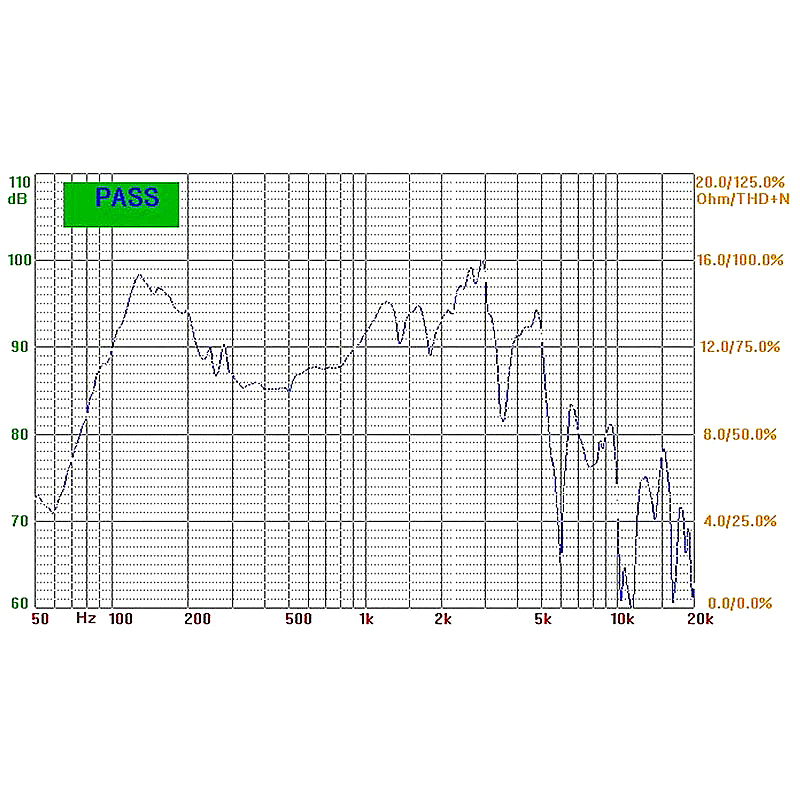

Response:Fo~5KHZ
S.P.L:90±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ60*32*8mm
Net weight:221g±8%
