Loudspeaker

Loudspeaker 102mm YD102-29-4F70P-R Min Full Range Equipment Speaker Drivers

  • Loudspeaker 102mm YD102-29-4F70P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co LtdModelYD102-29-4F70P-RDimension:102*102*47.5H mmCone Material:PaperEdge:FoamNominal Power:25WMaximum

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD102-29-4F70P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 102mm YD102-29-4F70P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD102-29-4F70P-R

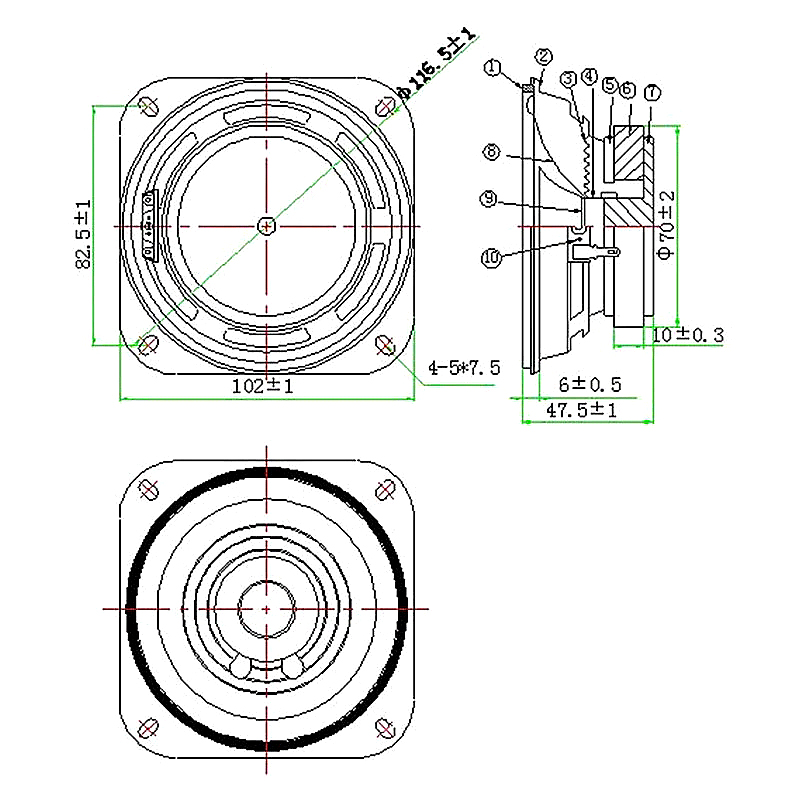

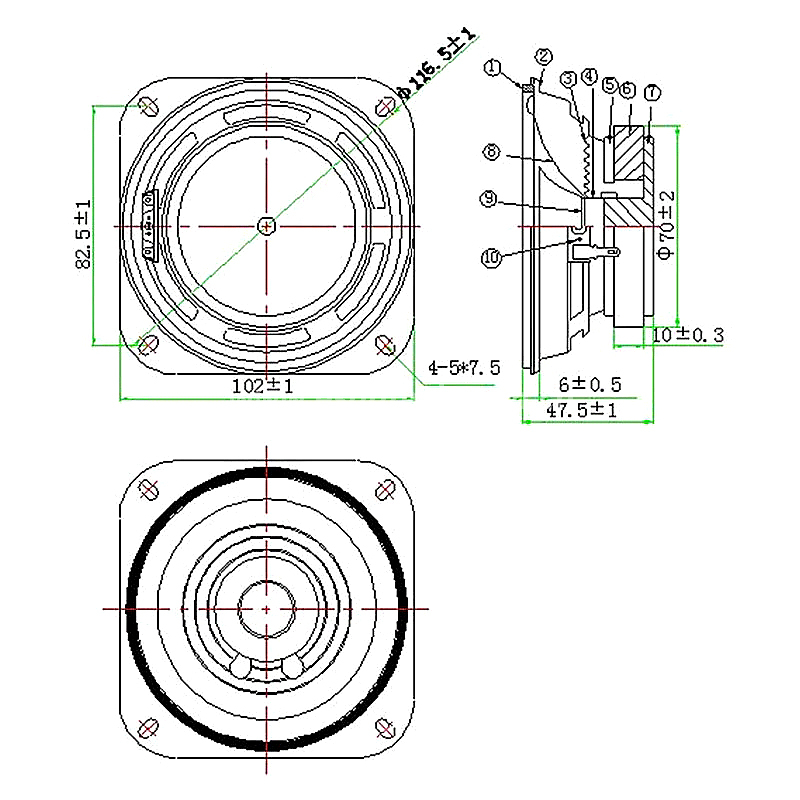

Dimension:102*102*47.5H mm
Cone Material:Paper
Edge:Foam
Nominal Power:25W
Maximum Power:26W
Impedance:4Ω±15%Ω
Voice coil:Φ19.45mm ASV+Cu
Fo:110±20%
Response:Fo~15KHZ
S.P.L:91±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ70*32*10mm
Net weight:380g±8%
