Loudspeaker

Loudspeaker 102mm YD102-26-8F70P-R Min Full Range Multimedia Speaker Drivers

  • Loudspeaker 102mm YD102-26-8F70P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD102-26-8F70P-RDimension:102*102*41H mmCone Material:PaperEdge:RubberNominal Power:25WMaximu

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD102-26-8F70P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 102mm YD102-26-8F70P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd


ModelYD102-26-8F70P-R

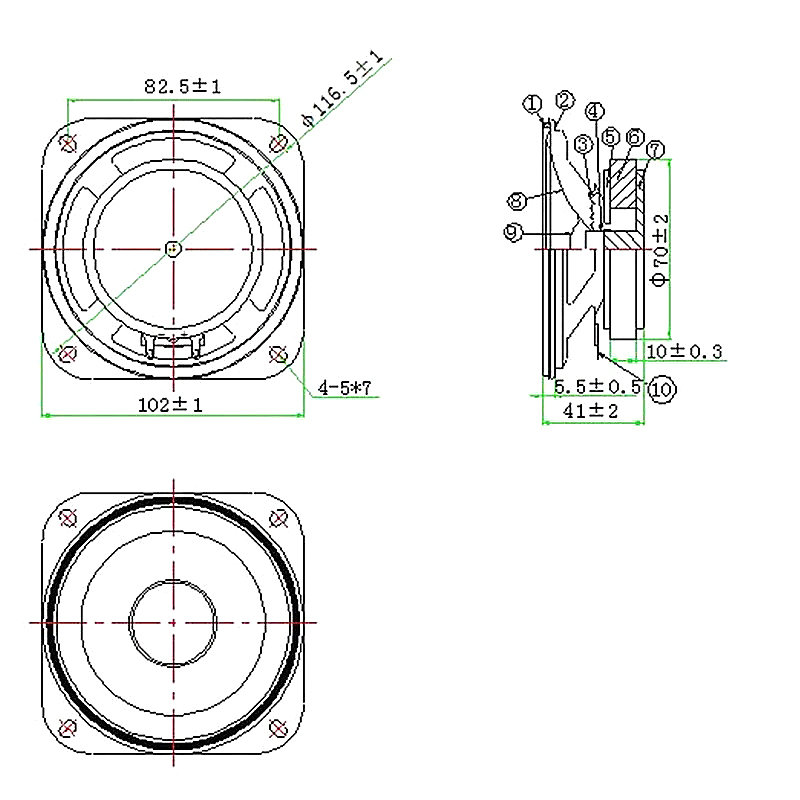

Dimension:102*102*41H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:25W
Maximum Power:30W
Impedance:8±15%Ω
Voice coil:Φ19.45mm ASV+Cu
Fo:120±20%Hz
Response:Fo~15KHZ
S.P.L:92±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ70*32*10mm
Net weight:374g±8%
