Loudspeaker

Loudspeaker 102mm YD102-24-8F40CT Min Full Range Multimedia Speaker Drivers

  • Loudspeaker 102mm YD102-24-8F40CT Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD102-24-8F40CTDimension:102*102*43H mmCone Material:PaperEdge:RubberNominal Power:10WMaximum

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD102-24-8F40CT
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 102mm YD102-24-8F40CT Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD102-24-8F40CT

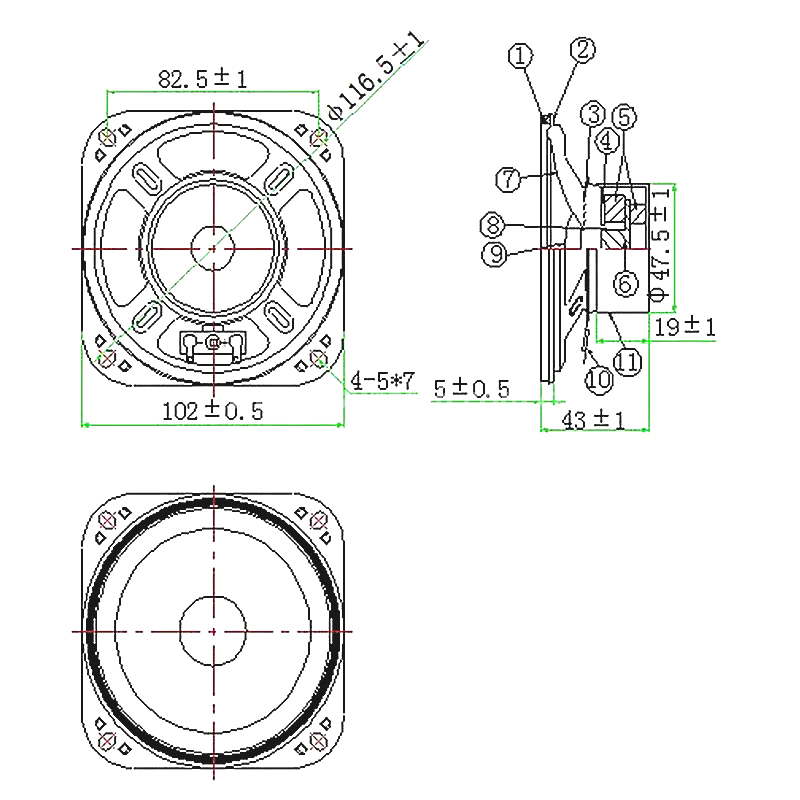

Dimension:102*102*43H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:10W
Maximum Power:12W
Impedance:8±15%Ω
Voice coil:Φ14.28mm ASV+Cu
Fo:120±20%Hz

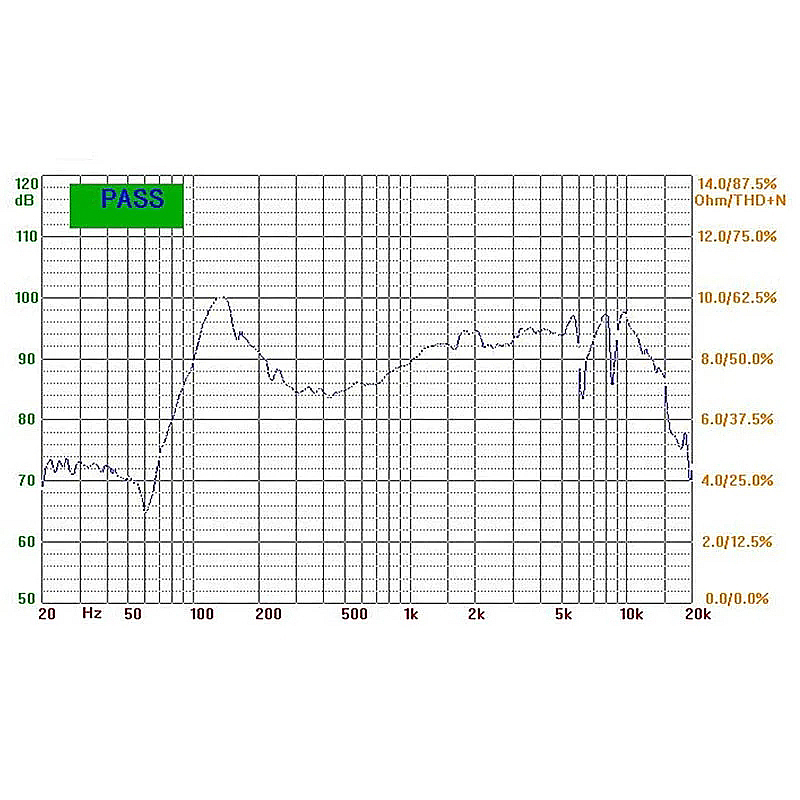

Response:Fo~15KHZ
S.P.L:89±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ40*19*8 +Φ32*18*6mm
Net weight:160g±8%
