Product Description

Loudspeaker 102mm YD102-24-4F40CT Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD102-24-4F40CT

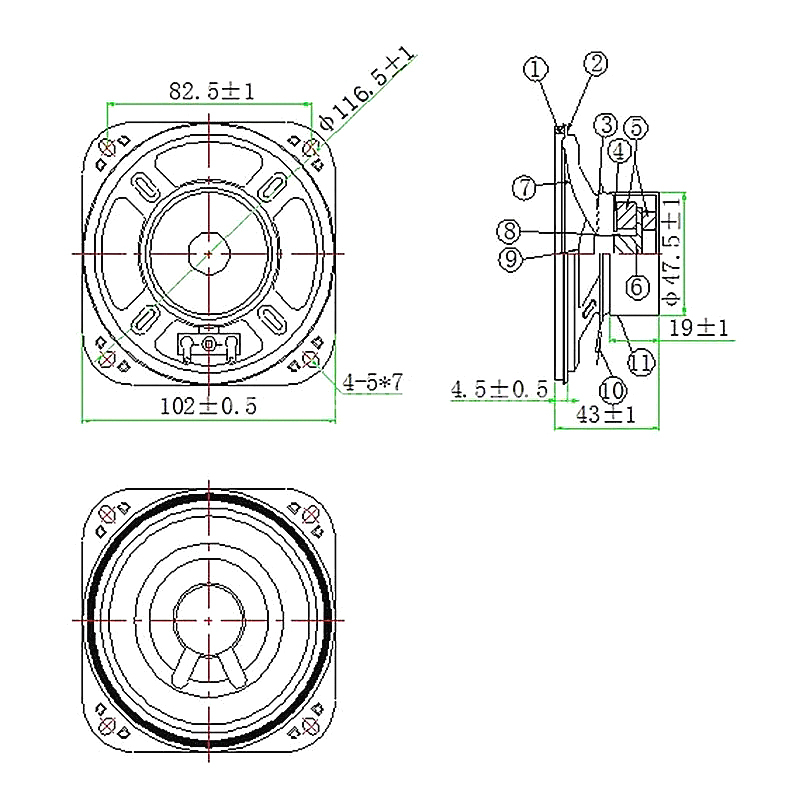

Dimension:102*102*43H mm
Cone Material:Paper
Edge:Paper
Nominal Power:5W
Maximum Power:6W
Impedance:4Ω±15%Ω
Voice coil:Φ14.28mm ASV+Cu
Fo:160±20%

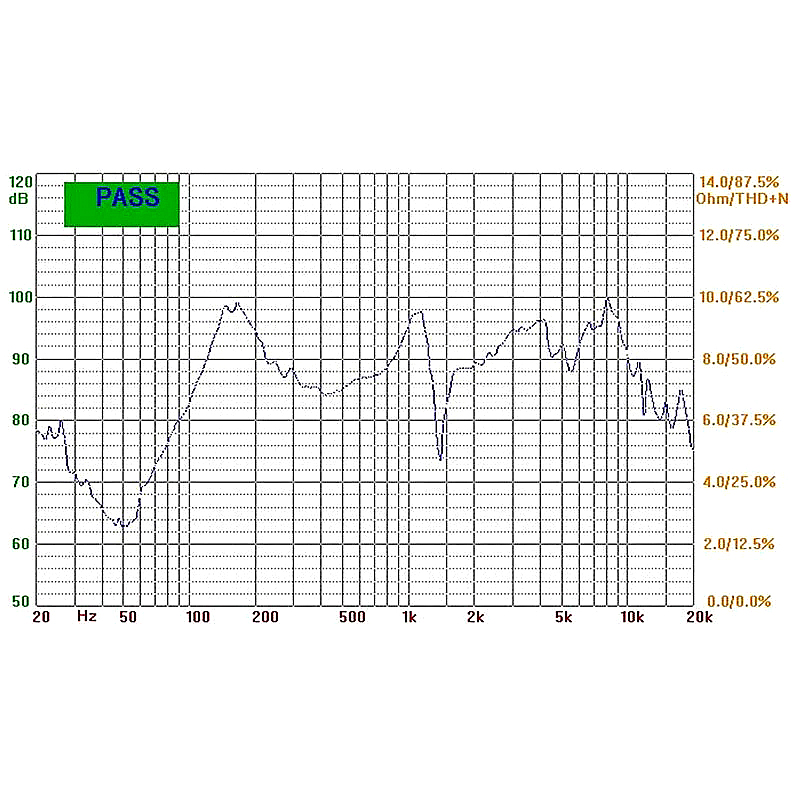

Response:Fo~15KHZ
S.P.L:90±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ40*19*8;Φ32*Φ18*6mm
Net weight:160g±8%
