Product Description

Loudspeaker 102mm YD102-01-4F50P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD102-01-4F50P-R

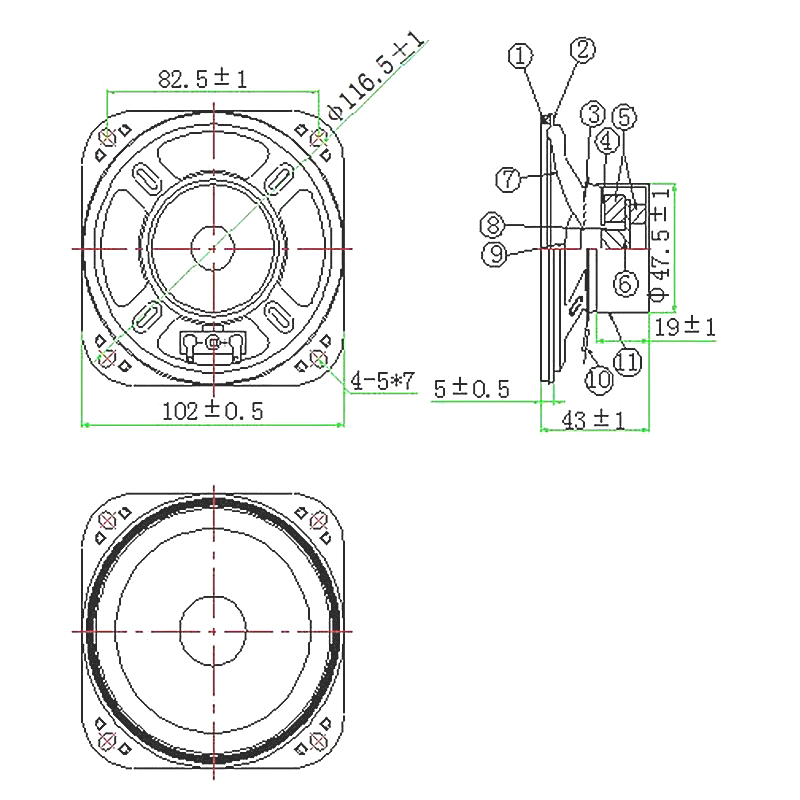

Dimension:Φ102*102*43H mm
Cone Material:Paper
Edge:Foam
Nominal Power:10W
Maximum Power:11W
Impedance:4±15%Ω
Voice coil:Φ14.28mm ASV+Cu
Fo:120±20%Hz

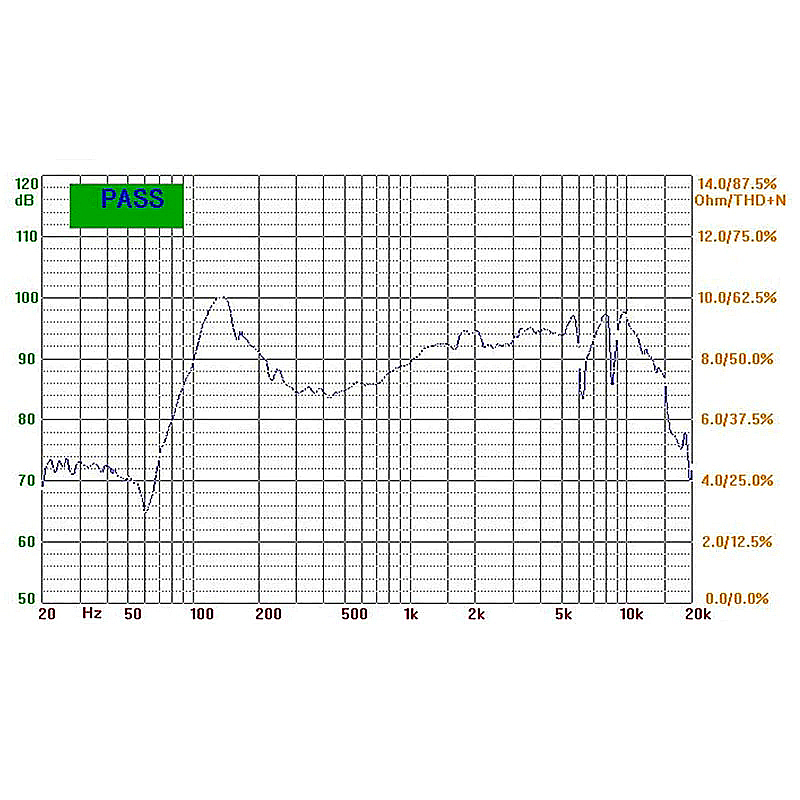

Response:Fo~15KHZ
S.P.L:89±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ40*19*8mm;Φ32*18*6mm
Net weight:160g±8%
